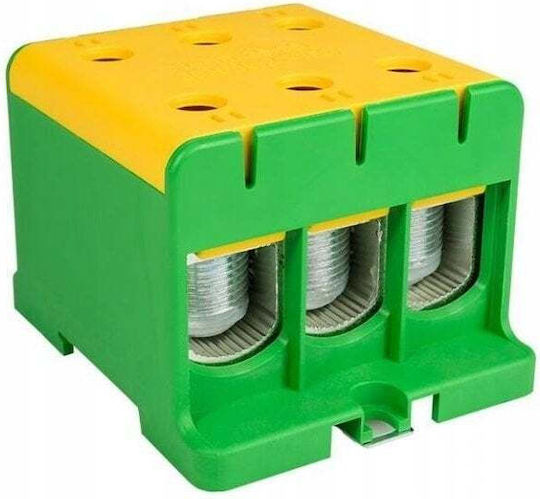

The Elektro-Plast 48.3152 distribution block features 3 poles for connecting AL/CU conductors with a cross-section of up to 150 mm². It supports flat mounting or installation on a TH 35 mm rail and uses screw electrical connection.
- Number of terminals: 3
- Number of poles: 3
- Conductor cross-section: 3×150 mm²
- Nominal voltage: 400 V AC
- Nominal current: 300 A
- Housing material: plastic
- Mounting: flat or on TH 35 mm rail
- Operating temperature: -25°C to +85°C
- Protection rating: IP20
- Dimensions: length 16 mm, width 10 mm
- Manufacturer code: 48.3152
- Type
- Power Distribution Block
