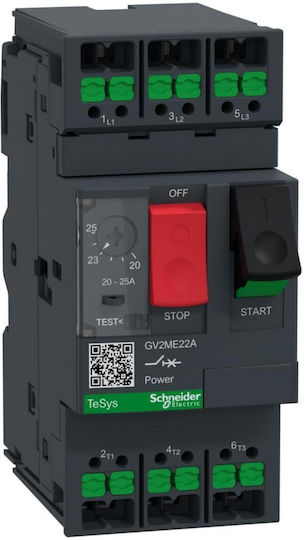

The Schneider TeSys Deca GV2ME22A thermal-magnetic motor circuit breaker is designed to protect three-phase motors against overloads and short circuits. It features start and stop buttons, as well as snap-in terminals for tool-free connection.
- Poles: 3P
- Rated current: 25 A
- Operating voltage: 230–690 V
- Thermal adjustment range: 20–25 A
- Magnetic trip: 12 times the rated current
- Rated power: 11 kW at AC-3, 400 V; 5.5 kW at AC-3, 230 V
- Breaking capacity: 15 kA at 400 V
- Endurance: 100,000 cycles in utilization category AC-3
- Degree of protection: IP20
- Connection type: snap-in
- Dimensions (height × width × depth): 101 × 45 × 78.5 mm
- Compliance with standards: IEC, UL, CSA, CCC, EAC, Marine
