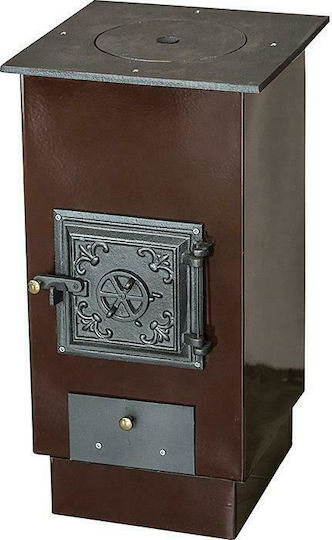

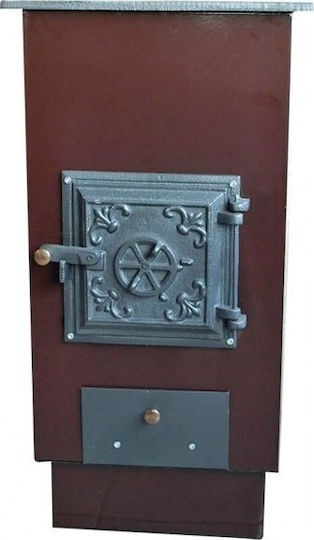

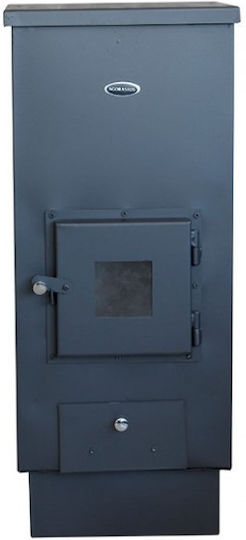

The device is used for space heating using solid fuels (natural wooden logs). It is made of steel metal parts, manually fed, and intended to be installed as a freestanding device.
The combustion air enters naturally through four (4) longitudinal openings located on the body of the device below the fire door. The combustion air is directed straight into the firebox without preheating.
The flue gases produced during the combustion process are directed to the flue outlet located on the roof of the firebox, deflected by an internal steel deflector installed on the roof of the firebox.
The ash is gravity-fed through the lower grate into the ash pan located below the firebox. Access to the ash pan requires opening the fire door.
Product Details
- Air Ηeater
- No
- Radiator
- No
- Cook Stove (with Oven)
- No
- Chimney diameter
- 120 mm
- Material
- Metallic
- Colour
- Burgundy
- Weight
- 43 kg
- Wood Heating Stove
- No
Performance
- Energy Class
- A
- Total Power
- 8.5 kW
- Power in Air
- 8.5 kW
- Energy Efficiency
- 60 %
- Water Consumption
- 4.722 kg/h
Dimensions
- Height
- 670 mm
- Width
- 340 mm
- Length
- 360 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
