Inputs

• INPUT: impedance 500 Kohm, max. voltage 15 Vpp
• BALANCED INPUT (XLR): impedance 100 Kohm, max. voltage 25 Vpp
• EFFECT RETURN: impedance 33 Kohm, max. voltage 10 Vpp

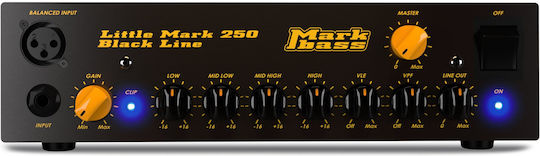

-controls

• GAIN: -60 dB to +23 dB range
• MASTER VOLUME
• LINE OUT LEVEL
• GROUND LIFT (switch on rear panel)
• PRE/POST EQ (switch on rear panel)

Equalization

• LOW: center frequency: 40 Hz; level: ±16 dB
• LOW MID: center frequency: 360 Hz, level: ±16 dB
• HIGH MID: center frequency: 800 Hz, level: ±16 dB
• HIGH: center frequency: 10 kHz, level: ±16 dB
• VPF (Variable Pre-shape Filter): center frequency 380 Hz
• VLE (Vintage Loudspeaker Emulator): frequency range 250 Hz-20 kHz

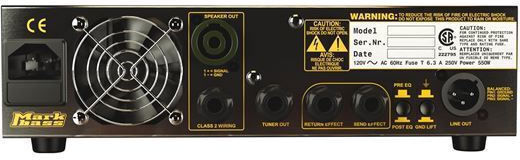

Outputs

• LINE OUT: balanced XLR, max. voltage 20 Vpp
• EFFECT SEND: unbalanced, max. voltage 20 Vpp (pre-EQ)
• TUNER OUT: unbalanced, max. voltage 2 Vpp
• SPEAKER OUT: speakon/1/4" combo, 1/4"

Other features

• WEIGHT: 5.07 lbs / 2.3 kg
• WIDTH: 10.87 in. / 27.6 cm
• DEPTH: 9.84 in. / 2.5 cm
• HEIGHT: 3.27 in. / 8.3 cm
• OUTPUT POWER: 250W RMS @ 4 ohms / 150W RMS @ 8 ohm
• POWER REQUIREMENT: 100/120V; 230V; 240V - 50/60Hz
