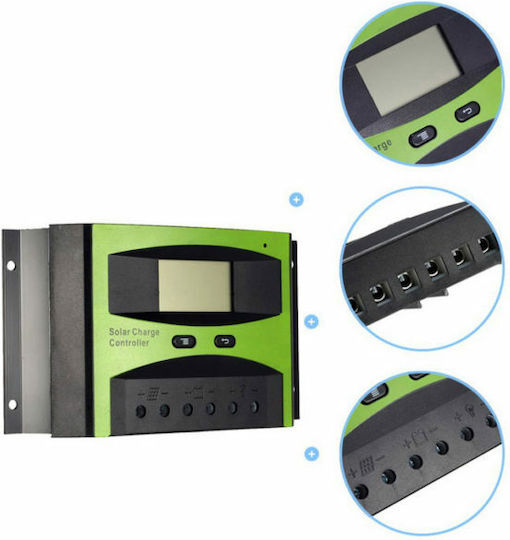

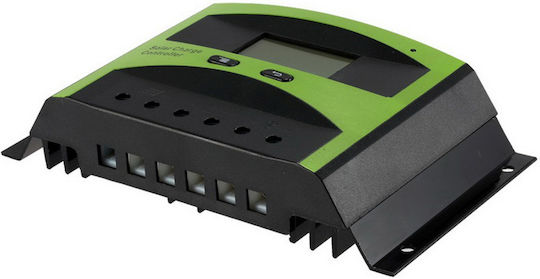

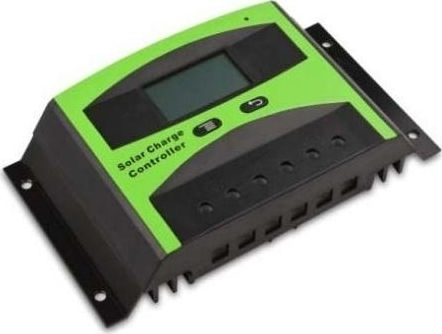

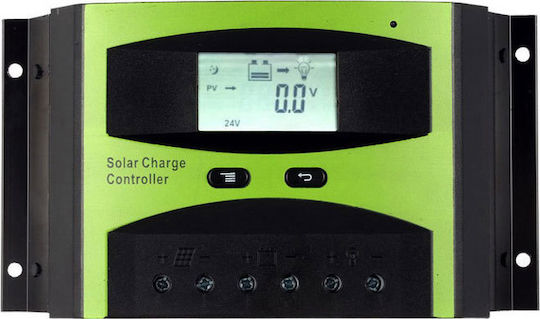

The LD25 charge controller manages photovoltaic system charging using PWM technology and automatic voltage recognition. The LCD displays the charging current, discharge current and battery voltage every 5 seconds. Charging and discharge parameters can be adjusted, and different load operating modes can be selected.
It features an electronically controlled circuit, automatic restart delay after an overload, and protection against reverse battery connection, reverse discharge, low voltage, overload and short circuit. The buttons have a short-press function.
- Type: PWM
- Rated operating voltage: 24 V
- Rated operating current: 40 A
- Maximum solar panel voltage: Below 50 V
- Float charging voltage: 13.7 V / 27.4 V, adjustable
- Low-voltage protection: 10.7 V / 21.4 V, adjustable
- Low-voltage recovery: 12.6 V / 25.2 V, adjustable
- No-load consumption: Below 30 mA
- Loop voltage drop: Below 200 mA
- Temperature compensation: -4 mV/cell/℃
- Maximum installation cable cross-section: 25 mm²
- Operating temperature: -20 ℃ to 50 ℃
- Storage temperature: -30 ℃ to 70 ℃
- Operating humidity: Up to 90%, non-condensing
- Display: LCD
- Dimensions: 190 × 108 × 41.5 mm
- Weight: 520 g
- Certifications: ISO9001:2008, CE
