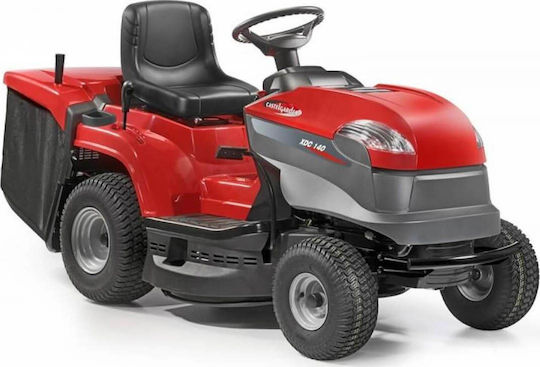

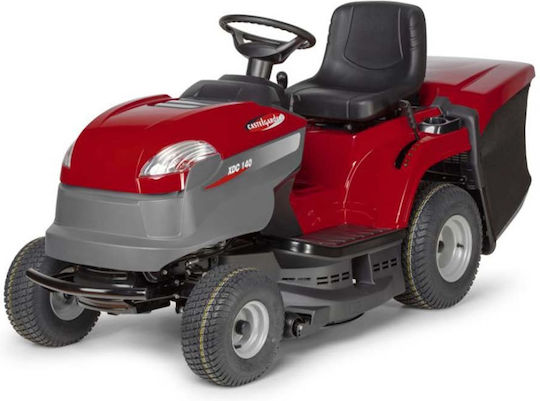

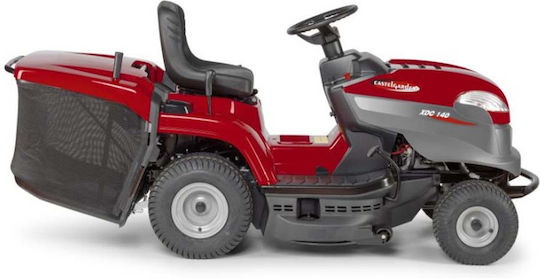

Self-propelled tractor with a gasoline engine from the company Castel Garden. With self-propulsion, all you need to do is steer the product wherever you desire.

The tractor is equipped with a four-stroke gasoline engine, which rotates the cutting blades. A significant advantage over other engines is the increased power and torque for many hours of work on large areas. Inevitably, this type of engine has some disadvantages such as noisy operation, emission of exhaust gases, and high cost of use and maintenance.

What is a four-stroke engine?

It is an internal combustion engine that operates with a circulation of oil and air in four operating cycles. During the first cycle, known as the intake cycle, air and fuel enter the engine and the mixture is drawn into the cylinder. Then, the movement of the piston turns the cylinder in the second cycle, known as the compression cycle, where the mixture is compressed. In the third cycle, the combustion cycle, the mixture is ignited by the spark plug and produces power that drives the engine. Finally, the fourth cycle, the exhaust cycle, allows the exhaust gases to exit the engine. This process is repeated continuously as the engine operates.

Thanks to its adjustable cutting system, it can leave uncut grass from 25 to 80 millimeters, allowing you to cut it to the desired height. It has 7 height adjustment positions.

The Castel Garden XDC 140 is also equipped with a seat that is ergonomically designed for comfort during use.

The 240-liter capacity bin allows you to mow for extended periods before needing to stop and empty it.

• Preparation: Before using the lawn tractor, make sure the tires are inflated and the blades are sharp and clean.
• Starting: Before starting the engine, ensure that the gear levers are in the "neutral" position, the gear selector is in the "rest" position, and the brake pedal is pressed. Then, press the start button.
• Cutting Adjustment: Before you begin mowing the grass, adjust the cutting height. The cutting height should be appropriate for your type of grass and the level of the ground. Adjust the cutting height by pressing the height adjustment lever on the rear side of the lawn tractor.

• Engine: Four-stroke, gasoline, single-cylinder
• Type: Briggs & Stratton P.B.
• Displacement: 344cc / 7.9hp
• Transmission: Manual
• With five (5) forward speeds and one (1) reverse
• Start: Electric
• Wheels: Front 15×600 – 6, Rear 18×850-8
• Blade width: 84 cm (the wider the blade, the more grass it cuts with each pass)
• Grass collection bin: 240 liters

Vibration and Noise

• Measured sound power level dB(A): 100
• Maximum vibration at the handlebars (m/s2): 6.37
• Maximum vibration at the driver's seat (m/s2): 1.06
• Guaranteed sound power level (LwA) - dB(A): 100
• Measured sound pressure level at the operator's ear dB(A): 86

Dimensions and Weight

• Packaging weight: 224 kg
• Product weight: 160 kg
• Product length: 233.8 cm
• Product width:  88 cm
• Product height: 110 cm
