Description
Specifications
Power Management

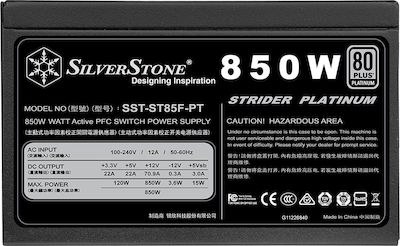

- Total power: 850W
- AC input voltage: 90 - 264V
- AC input frequency: 50 - 60Hz
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120W
- Combined power (+12V): 850W
- Combined power (+5V): 120W
- Combined power (-12V): 3.6W
- Combined power (+5Vsb): 15W
- Max output current (+3.3V): 22A
- Max output current (+12V): 70.9A
- Max output current (+5V): 22A
- Max output current (-12V): 0.3A
- Max output current (+5Vsb): 3A
- Efficiency: 92%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Connectivity

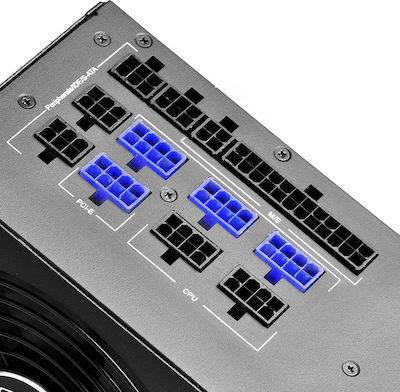

- Motherboard power connector: 20-pin ATX
- Peripheral (Molex) power connectors (4-pin): 3
- Motherboard power cable length: 550mm
- Number of SATA power connectors: 12
- SATA power cable length: 150mm
- Peripheral (Molex) power cable length: 150, 600mm
- EPS power connector (8-pin): YES
- PCI Express power connectors (6-pin): 4
- PCI Express power cable length: 550mm
- ATX power connector (20-pin): YES
- Floppy drive power connector: 1
- Floppy drive power cable length: 100mm
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- 80 PLUS certification: 80 PLUS Platinum
- Noise level: 28dB
- MTBF rate: 10000h
Design
- Product color: Black

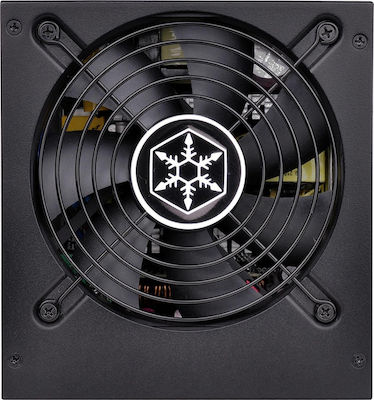

- Fan diameter: 120mm
- Number of fans: 1
- Fan locations: Top
Environmental conditions
- Operating temperature range: 0 - 50°C
Weight and dimensions
- Width: 150mm
- Depth: 140mm
- Height: 86mm
- Weight: 2540g
Logistics data
- Harmonized System (HS) code: 84733020
Other features
- Noise level (full load, 100% operation): 28dB
- Number of SATA connectors: 12
- Number of PCI Express connectors: 4
- Output power description: 850
Dimensions
- Power
- 850 W
- Size
- ATX
- Modularity
- Full Modular
- Certification
- 80 Plus Platinum
- Fan Dimension
- 120 mm
- Power Protection
- Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP), Over Voltage Protection (OVP), Short Circuit Protection (SCP), Under Voltage Protection (UVP)
- Extra
- -
- Color
- Black
ATX Version
- ATX 3.1
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
