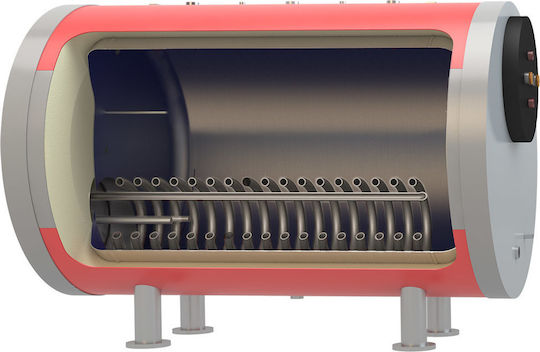

The boiler room water heaters by MasterSOL are internally protected from corrosion using the epoxy resin method, ensuring hygienic water and durability over time.
Ideal for residential and commercial use, they are made from high-quality, eco-friendly materials for long-term durability. They are installed horizontally and feature positions for recirculation and an immersion thermometer, as well as a cleaning flange.
- Insulation: Removable soft polyurethane 10 cm thick.
- Exchanger Type: Removable coils made from 11/4'' steel pipe with epoxy resin protection.
- Anti-corrosion protection: Magnesium anode.
- External casing: Soft PVC.
- Total height: 2000 mm.
- Diameter with insulation: 1800 mm.
- Tank: 5000 L.
- Heated surface: 5.4 m2.
- Weight: 1307 kg.
- Maximum pressure of primary exchanger: 25 bar.
- Maximum operating pressure: 10 bar.
- Maximum test pressure: 15 bar.
- Maximum operating temperature: 95 °C.
- Tank insulation: 100 mm soft foam.
- Type
- Boiler Boiler Station
- Capacity
- 5000 lt
- Number of Alternatives
- with One Alternator
- Electrical Resistor
- Optionally
- for Heat Pumps
- No
- Μaterial of Boiler
- Inox
- Power Input Modes
- Double Energy
- Height
- 200 cm
- Diameter
- 180 cm
