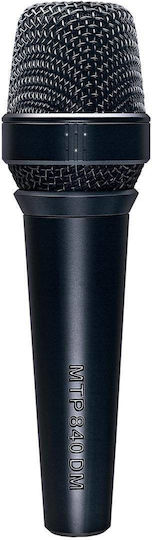

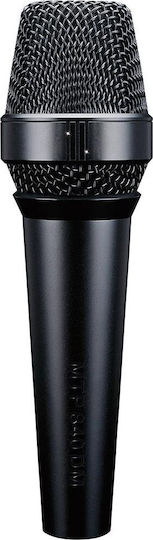

Lewitt MTP 840 DM Δυναμικό Microphone XLR Handmade for Vocals
Microphones

Lewitt MTP 840 DM Δυναμικό Microphone XLR Handmade for Vocals

Acoustic operating principle: Dynamic, moving coil

Directivity pattern: Supercardioid

Frequency range: 40 to 18,000 Hz

Sensitivity: 3.5 mV / Pa (-49 dBV), passive mode - 7 mV / Pa (-43 dBV), active...

Acoustic operating principle: Dynamic, moving coil

Directivity pattern: Supercardioid

Frequency range: 40 to 18,000 Hz

Sensitivity: 3.5 mV / Pa (-49 dBV), passive mode - 7 mV / Pa (-43 dBV), active mode - 14 mV / Pa (-37 dBV)

Signal-to-noise ratio: 75 dB-A

Equivalent noise level: 19 dB-A, Supercardioid (IEC 61672-1)

Dynamic range in passive mode: 135 dB-A

...

See full description See full description

  • Type (Directivity)

    Unidirectional (Hypercardioid)

    (Hypercardioid): Even narrower directional pickup, with greater isolation from the sides, but sensitivity to sound from the back. Useful in film recordings and stage recordings.
  • Usage Voice
  • Placement Handmade
  • Connectivity XLR
  • See all
233 00 €
233 Coins 233 Coins
Delivery by Wed, 08 Jul
Free   shipping cost
From Stollas 4.8 (33)
4.8 (33 reviews)
Καλλιθέα, Αττικής
3 pieces
See Audio on the page of Stollas
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Acoustic operating principle: Dynamic, moving coil

Directivity pattern: Supercardioid

Frequency range: 40 to 18,000 Hz

Sensitivity: 3.5 mV / Pa (-49 dBV), passive mode - 7 mV / Pa (-43 dBV), active mode - 14 mV / Pa (-37 dBV)

Signal-to-noise ratio: 75 dB-A

Equivalent noise level: 19 dB-A, Supercardioid (IEC 61672-1)

Dynamic range in passive mode: 135 dB-A

Dynamic range in active mode: 121 dB-A, 0 dB gain - 115 dB-A, 6 dB gain - 109 dB-A, 12 dB gain

Maximum SPL for 0.5% THD, active mode: 140 dB, 0 dB gain - 134 dB, 6 dB gain - 128 dB, 12 dB gain

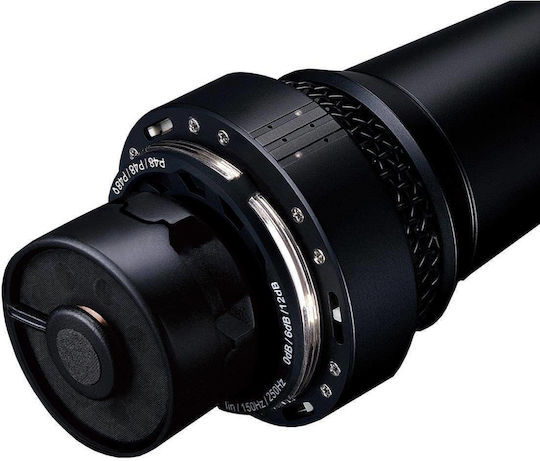

Sensitivity settings, active mode: 0 dB, 6 dB, 12 dB, adjustable

Bass cut-off filter: 12 dB / octave at 150 Hz - 12 dB / octave at 250 Hz

Nominal impedance: 1,000 ohms

Power supply: 48 V +/- 4 V (IEC 61938)

Instantaneous power consumption: 5.5 mA (IEC 61938)

Gold-plated connections: 3-pin XLR

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Mode of Operation
Dynamic

Mode of Operation

Dynamic

Durable microphone that does not require power supply. Ideal for live performances and loud sound sources (vocals, drums, amplifiers).
Directivity
Unidirectional (Hypercardioid)

Directivity

Unidirectional (Hypercardioid)

(Hypercardioid): Even narrower directional pickup, with greater isolation from the sides, but sensitivity to sound from the back. Useful in film recordings and stage recordings.
Frequency
40 - 18000 Hz

Frequency

Indicates the frequency range that a microphone can capture and is expressed in Hertz (Hz). The more balanced the range, the more natural and clear the sound.

Usage examples:

  • 100 – 10,000 Hz to 200 – 12,000 Hz: Emphasis on speech intelligibility, with limited low and very high frequencies.
  • 50 – 14,000 Hz to 80 – 16,000 Hz: Balance of volume and clarity. Ideal for live performances and dynamic microphones.
  • 40 – 15,000 Hz to 50 – 18,000 Hz: Rich, natural vocal sound. Suitable for podcasts, radio, and streaming.
  • 20 – 18,000 Hz to 20 – 20,000 Hz: Full spectrum with high detail and "air". Ideal for studio recording.
  • Below 20 Hz & above 20,000 Hz: Extended technical range for specialized studio applications.
Impendance
600 ohm

Impendance

Indicates how "easily" the microphone transmits its signal to the equipment (mixer, sound card, amplifier). It is expressed in Ohms (Ω).

  • Low impedance (≤ 600 Ω): Stable signal, less noise, ideal for professional equipment and long cable runs.
  • Medium impedance (600 – 1,000 Ω): Good balance, common in live and general use.
  • High impedance (> 1,000 Ω): More sensitive to loss and noise, usually found in older or specialized equipment.
Sensitivity
3.5 mV/Pa

Sensitivity

The sensitivity of a microphone indicates how strong the signal it produces is when recording a sound. It is measured in mV/Pa or dBV/Pa.

  • High sensitivity: The microphone can capture very low sounds, but it may be more sensitive to ambient noise.
  • Low sensitivity: It records louder sound sources without distortion, but requires more amplification from the preamp.

In general, condenser microphones have higher sensitivity than dynamic ones.

Max SPL
135 dB

Max SPL

Max SPL (Maximum Sound Pressure Level) is the maximum sound pressure level (in dB) that a microphone can withstand before it starts to distort the sound.

  • High Max SPL (e.g., 140-160dB): Ideal for recording loud sources such as drums, amplified guitar, or live concerts.
  • Lower Max SPL (e.g., 120dB): Suitable for vocals and softer recordings.

The higher the Max SPL, the louder the sounds it can capture without distortion.
Connectivity
XLR

General Characteristics

Device Group
Voice
Placement
Handmade
Vintage
No
Set
No
Color
Black

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Acoustic operating principle: Dynamic, moving coil

Directivity pattern: Supercardioid

Frequency range: 40 to 18,000 Hz

Sensitivity: 3.5 mV / Pa (-49 dBV), passive mode - 7 mV / Pa (-43 dBV), active mode - 14 mV / Pa (-37 dBV)

Signal-to-noise ratio: 75 dB-A

Equivalent noise level: 19 dB-A, Supercardioid (IEC 61672-1)

Dynamic range in passive mode: 135 dB-A

Dynamic range in active mode: 121 dB-A, 0 dB gain - 115 dB-A, 6 dB gain - 109 dB-A, 12 dB gain

Maximum SPL for 0.5% THD, active mode: 140 dB, 0 dB gain - 134 dB, 6 dB gain - 128 dB, 12 dB gain

Sensitivity settings, active mode: 0 dB, 6 dB, 12 dB, adjustable

Bass cut-off filter: 12 dB / octave at 150 Hz - 12 dB / octave at 250 Hz

Nominal impedance: 1,000 ohms

Power supply: 48 V +/- 4 V (IEC 61938)

Instantaneous power consumption: 5.5 mA (IEC 61938)

Gold-plated connections: 3-pin XLR

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Mode of Operation
Dynamic

Mode of Operation

Dynamic

Durable microphone that does not require power supply. Ideal for live performances and loud sound sources (vocals, drums, amplifiers).
Directivity
Unidirectional (Hypercardioid)

Directivity

Unidirectional (Hypercardioid)

(Hypercardioid): Even narrower directional pickup, with greater isolation from the sides, but sensitivity to sound from the back. Useful in film recordings and stage recordings.
Frequency
40 - 18000 Hz

Frequency

Indicates the frequency range that a microphone can capture and is expressed in Hertz (Hz). The more balanced the range, the more natural and clear the sound.

Usage examples:

  • 100 – 10,000 Hz to 200 – 12,000 Hz: Emphasis on speech intelligibility, with limited low and very high frequencies.
  • 50 – 14,000 Hz to 80 – 16,000 Hz: Balance of volume and clarity. Ideal for live performances and dynamic microphones.
  • 40 – 15,000 Hz to 50 – 18,000 Hz: Rich, natural vocal sound. Suitable for podcasts, radio, and streaming.
  • 20 – 18,000 Hz to 20 – 20,000 Hz: Full spectrum with high detail and "air". Ideal for studio recording.
  • Below 20 Hz & above 20,000 Hz: Extended technical range for specialized studio applications.
Impendance
600 ohm

Impendance

Indicates how "easily" the microphone transmits its signal to the equipment (mixer, sound card, amplifier). It is expressed in Ohms (Ω).

  • Low impedance (≤ 600 Ω): Stable signal, less noise, ideal for professional equipment and long cable runs.
  • Medium impedance (600 – 1,000 Ω): Good balance, common in live and general use.
  • High impedance (> 1,000 Ω): More sensitive to loss and noise, usually found in older or specialized equipment.
Sensitivity
3.5 mV/Pa

Sensitivity

The sensitivity of a microphone indicates how strong the signal it produces is when recording a sound. It is measured in mV/Pa or dBV/Pa.

  • High sensitivity: The microphone can capture very low sounds, but it may be more sensitive to ambient noise.
  • Low sensitivity: It records louder sound sources without distortion, but requires more amplification from the preamp.

In general, condenser microphones have higher sensitivity than dynamic ones.

Max SPL
135 dB

Max SPL

Max SPL (Maximum Sound Pressure Level) is the maximum sound pressure level (in dB) that a microphone can withstand before it starts to distort the sound.

  • High Max SPL (e.g., 140-160dB): Ideal for recording loud sources such as drums, amplified guitar, or live concerts.
  • Lower Max SPL (e.g., 120dB): Suitable for vocals and softer recordings.

The higher the Max SPL, the louder the sounds it can capture without distortion.
Connectivity
XLR

General Characteristics

Device Group
Voice
Placement
Handmade
Vintage
No
Set
No
Color
Black

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
