Hikvision DS-7104HQHI-K1 DVR HVR DS-7104HQHI-Κ1
Surveillance Video Recorders

Hikvision DS-7104HQHI-K1 DVR HVR DS-7104HQHI-Κ1

Key features:

  • Hybrid Video Recorder (HVR)
  • Number of channels: 4
  • Resolution up to 4MP
  • Compression technology: H.265 Pro+
  • Supports 1 hard drive up to 6TB
See full description

  • Type

    HVR

    Combination of NVR and DVR, supports both analog and IP cameras simultaneously.

  • Number of Channels

    The maximum number of cameras that can be connected to and managed by the recorder

  • Resolution

    Full HD+

    A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".

  • HDD Slots

    The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.

  • Maximum Capacity per Disk

    The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.

  • Ports

    VGA

    An analog video output. Used to connect the recorder to older computer monitors.

    HDMI

    The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.

    USB

    Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.

  • Video Compression

    H.265+

    Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

    • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

    (Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)
  • See all

User Manual

The product is not available for shipping to the selected country.
Product report

Description

Description

Camera Support & Analytics

The DS-7104HQHI-K1 recorder from Hikvision can record a total of up to 4 HDTVI/CVI/AHD cameras in resolutions up to 4MP Lite and analog cameras (CVBS). It supports 3MP HDTVI recording for channel 1, as well as an additional 2 network (IP) cameras with resolutions up to 6MP.

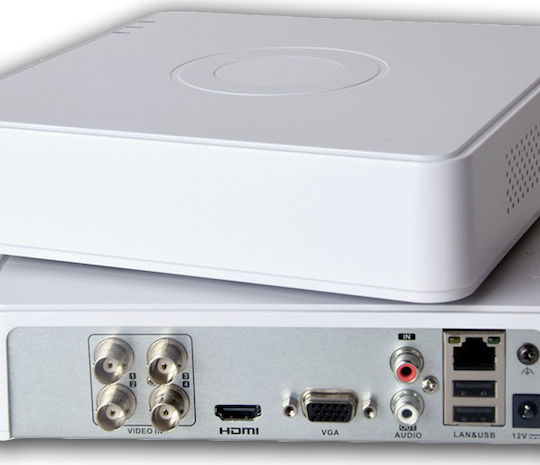

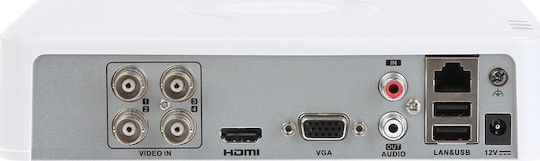

Slots & Ports

It features 1 HDMI output and 1 VGA with a resolution of 1920x1080 60Hz, 1 audio input and 1 audio output, and it has a slot that can accommodate 1 SATA hard drive up to 6TB. Additionally, it incorporates 1 RJ-45 10/100 Mbps self-adaptive ethernet port.

H.265 Pro+ Video Compression

The recorder features H.265 Pro+ video compression (Hikvision Smart Codec), specifically developed for analog recorders, which is up to 8 times more efficient than H.264 and 4 times more efficient than H.265, for lower storage requirements on hard drives and faster network transmission.

Features

  • Supports 4 channels of HDTVI / AHD / CVI / analog cameras and 2 network cameras
  • The maximum number of IP cameras you can have is 6 if the analog inputs are not used at all
  • Automatic recognition of the camera type on each input (adaptive access)
  • Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Simultaneous playback of up to 4 video channels
  • Supports smart search in playback
  • Disk slots: 1 to 6TB
  • Supports two-way audio transmission
  • Recording: 15fps at 4MP Lite, 15fps at 3MP, 15fps at 1080p, 25fps (real time) at 1080p lite (960x1080 pixels), 25fps (real time) at 720p / VGA / WD1 (960H) / 4CIF / CIF, 25fps (real time) for each IP camera

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Guides

User Manual

Specifications

Type
HVR

Type

HVR
Combination of NVR and DVR, supports both analog and IP cameras simultaneously.
Number of Channels Outputs
4

Number of Channels Outputs

The maximum number of cameras that can be connected to and managed by the recorder
Resolution
Full HD+

Resolution

Full HD+

A resolution significantly higher than Full HD. It offers excellent detail, ideal for digitally zooming in on license plates or faces without the image "breaking up".
WiFi
No

WiFi

Specifies whether the device can connect wirelessly to your router (Wi-Fi)
Gigabit Port
No

Gigabit Port

Specifies the speed of the wired network connection (LAN). "Gigabit" (1000 Mbps) is 10 times faster than standard "Fast Ethernet" (100 Mbps). It is essential for multi-channel 4K NVRs to handle the large volume of data from the cameras without delay.
Ports
VGA, HDMI, USB

Ports

VGA

An analog video output. Used to connect the recorder to older computer monitors.

HDMI
The digital output for video and audio. It is the standard way to connect the recorder to a modern TV or monitor (PC) and view your cameras in high resolution.
USB

Its main use is to connect a mouse for menu navigation and settings. Additionally, it is used to connect a USB stick (flash drive) in order to export (take a backup of) specific video clips that interest you.
ONVIF
No

ONVIF

ONVIF is a protocol that allows cameras and recorders from different manufacturers to communicate with each other.
Video Compression
H.265+

Video Compression

H.265+

Smart version of H.265, designed for 4K/8K surveillance. It offers very low bandwidth in static scenes, combining high image quality with significant storage space savings.

  • The standard supports approximately 50–60 days of continuous recording on a 2TB hard drive

(Values and durations are indicative and based on standard settings. Actual performance may vary depending on resolution, frame rate, scene movement, and hardware.)

Smart AI Detection

Human Detection
No

Human Detection

The technology recognizes human shapes in real time. Ideal for security, area monitoring, or alarms, reducing false alarms caused by other objects.
Vehicle Detection
No

Vehicle Detection

Recognizes and tracks vehicles, distinguishing them from other objects. Useful for parking, traffic management, or road surveillance.

HDD

HDD Slots
1

HDD Slots

The number of internal hard drives (SATA) that can be installed simultaneously in the recorder.
Maximum Capacity per Disk
6 TB

Maximum Capacity per Disk

The maximum size (in TB - Terabytes) of the hard drive that the device "recognizes" and supports in each slot.
Includes Hard Drive
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications

Reviews (4)

Reviews

4.0
4
4.0
Review this product
  1. 3
  2. 4 stars
    0
  3. 3 stars
    0
  4. 2 stars
    0
  5. 1
Review this product
  • andreouath
    1
    0 out of 6 members found this review helpful
    andreouath

    Verified purchase

    Good evening. I received it and none of the lights turn on and it doesn't recognize the hard drive. I sent it back to the company I bought it from and they sent me back the same defective one without proper inspection!! Since I have bought the product before, it was a good purchase and reliable, and I believe they sent me a defective one and made a mistake. Waiting for updates as I have sent it back twice!!

    Translated from Greek ·
    Did you find this review helpful?
  • ThanasisT
    5
    ThanasisT

    Verified purchase

    I have connected it to 2 hybrid HD cameras and their resolution is very good. Previously, I had bought a Hikvision for 130 euros, but for just 2 cameras, there is no need to go for something more expensive than this, which I bought for 74 euros.

    Translated from Greek ·
    Did you find this review helpful?
  • 5
    onlien
    Store representative

    Verified purchase

  • 5
    iomarios3243

    Verified purchase

  • andreouath
    1
    andreouath

    Good evening. I received it and none of the lights turn on and it doesn't recognize the hard drive. I sent it back to the company I bought it from and they sent me back the same defective one without proper inspection!! Since I have bought the product before, it was a good purchase and reliable, and I believe they sent me a defective one and made a mistake. Waiting for updates as I have sent it back twice!!

    Translated from Greek ·
    0
  • ThanasisT
    5
    ThanasisT

    I have connected it to 2 hybrid HD cameras and their resolution is very good. Previously, I had bought a Hikvision for 130 euros, but for just 2 cameras, there is no need to go for something more expensive than this, which I bought for 74 euros.

    Translated from Greek ·
    0
  • 5
    onlien

    0
  • 5
    iomarios3243

    0
  • See all
Questions (1)

Questions

31 users have this product and can help you

Ask for the product
dimas_fk19

Περιλαμβάνει σκληρό δίσκο μέσα; η πρέπει να αγοράσω εγώ ξεχωριστά και να το βάλω μέσα?

dimas_fk19 2022-05-10
ThanasisT

Δεν περιλαμβάνει σκληρό δίσκο. Αγοράζετε ξεχωριστά

ThanasisT 2022-05-16
Verified purchase
1 Reply Reply to
See all questions (1)
