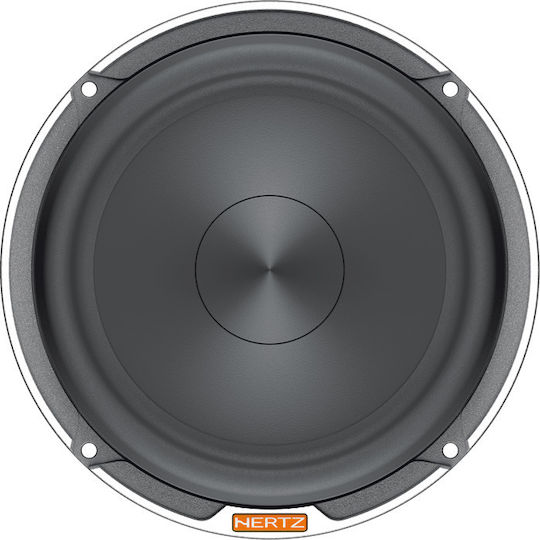

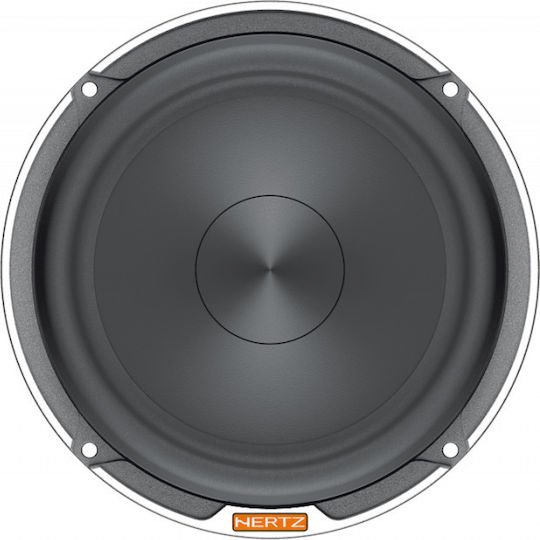

The electro-acoustic parameters of the MP 165P.3 Pro are designed to deliver the clear and compact sound of authentic mid-bass, ideal for large dynamic systems.
The 14 mm high voice coil has a nominal resistance of 3 Ω, offering increased power handling. These features allow maximum exploitation of the power of Hertz HCP and HDP amplifiers.

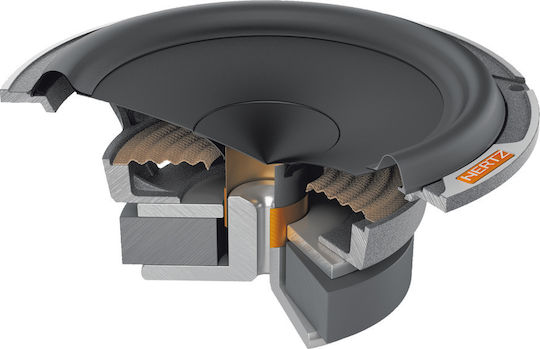

The 95 mm diameter ferrite magnet ensures linear voice coil displacement of +/- 4.5 mm, ensuring absolute control. The Free Surround Boundary moves a larger amount of air and the V-cone profile improves sound dispersion.
The aluminum basket reduces unwanted vibrations.
- Component Woofer Size: 165 mm (6.5 in.)
- Power Handling - Continuous: 100 W
- Power Handling - Peak: 200 W
- Impedance: 3 Ω
- Voice Coil Ø: 25 mm (1 in.)
- Frequency Response: 45 ÷ 4.5 kHz
- Magnet size: 95 x 45 x 17 mm (3.74 x 1.77 x 0.67 in.)
- Weight of one speaker: 1.2 kg (2.65 lb.)
- Magnet: High density flux ferrite
- Cone: Pressed-pulp cone with cotton fibers
- Xmech: ±7.5 mm (0.3 in.)
- Product Number
- 02.01.0204
Dimensions
- Type
- Midrange
- Shape
- Round
- Round Speakers Diameter
- 6.5 "
Technical Specifications
- Peak Power
- 200 W
- Nominal Impendance
- 3 ohm
