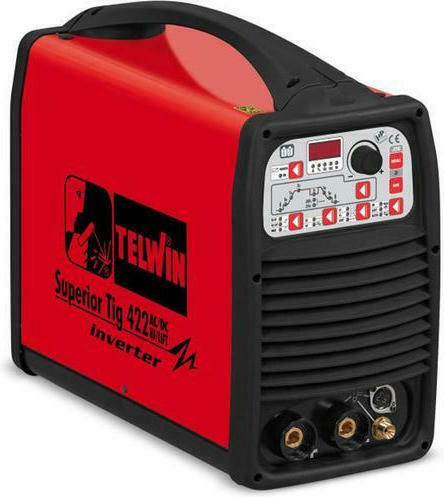

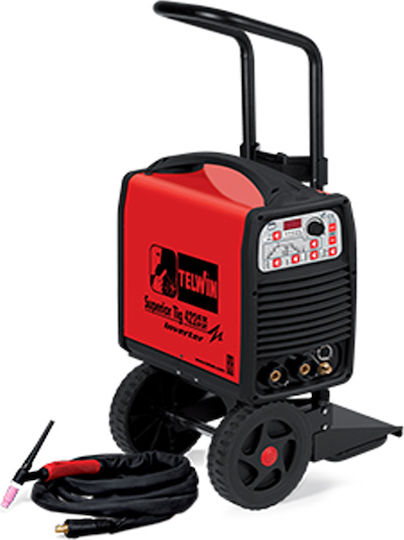

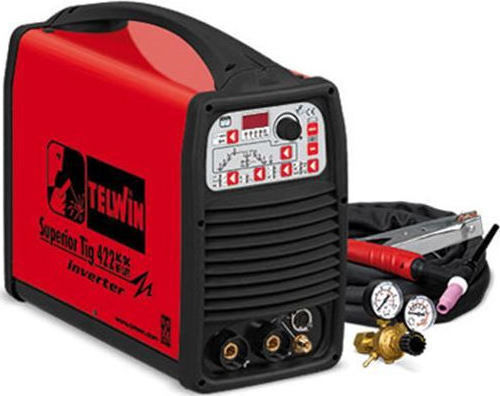

Telwin Superior TIG 422 AC/DC Welding Machine Inverter TIG / MMA with Maximum Welding Current 350A and Duty Cycle 35%
Welding Machines

Telwin Superior TIG 422 AC/DC Welding Machine Inverter TIG / MMA with Maximum Welding Current 350A and Duty Cycle 35%

SUPERIOR TIG 422 AC/DC-HF/LIFT Welding Inverter 350A

Specifications

  • Voltage: 400V, three-phase
  • Network frequency: 50 / 60 Hz
  • Current range: 5-350 A
  • Maximum current: 350 A - 35%
  • Current at 60%: 250 A
    • ...

SUPERIOR TIG 422 AC/DC-HF/LIFT Welding Inverter 350A

Specifications

  • Voltage: 400V, three-phase
  • Network frequency: 50 / 60 Hz
  • Current range: 5-350 A
  • Maximum current: 350 A - 35%
  • Current at 60%: 250 A
  • Maximum voltage (no load): 64 V
  • Maximum absorbed current: 21 A
  • Absorbed current at 60%: 13 A
  • Maximum absorbed power: 14 kW
  • Absorbed power at 60%: 8 kW
  • Network...
See full description See full description

  • Welding Current

    350

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    400

    It is the supply voltage that the machine requires from the electrical grid.
  • See all
5330 00 €
5,33€ cashback in Coins 5,33€ cashback in Coins
Delivery Thu, 09 Jul - Mon, 13 Jul
14,00 €

Reduced Shipping

For purchases from Skroutz a discount is applied for this particular product.

Learn more
Delivery to your floor available
Do you want it with Free shipping?
From Prometheus 4.9 (20)
4.9 (20 reviews)
Πειραιάς, Αττικής
In-store pickup available
See Tools on the page of Prometheus
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come and pick it up (completely free of charge if you have Skroutz Plus) and refund your money.

Review the product
Product report

Description

Description

SUPERIOR TIG 422 AC/DC-HF/LIFT Welding Inverter 350A

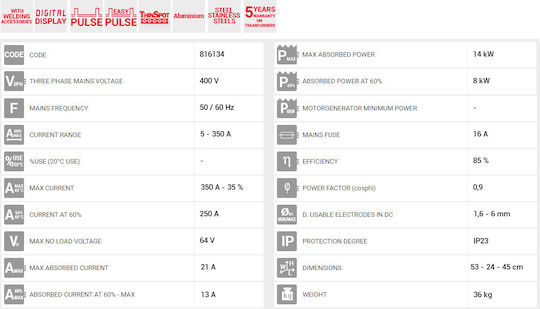

Specifications

  • Voltage: 400V, three-phase
  • Network frequency: 50 / 60 Hz
  • Current range: 5-350 A
  • Maximum current: 350 A - 35%
  • Current at 60%: 250 A
  • Maximum voltage (no load): 64 V
  • Maximum absorbed current: 21 A
  • Absorbed current at 60%: 13 A
  • Maximum absorbed power: 14 kW
  • Absorbed power at 60%: 8 kW
  • Network protection: 16 A
  • Efficiency: 85%
  • Power factor: 0.9
  • Used electrodes in DC (direct current): 1.6 - 6 mm
  • Protection degree: IP23
  • Dimensions: 53x24x45 cm
  • Weight: 36 Kg

Description

TELWIN TECHNOLOGY TIG 422 AC/DC-HF/LIFT VRD microprocessor-controlled TIG welding machine (high frequency HF or LIFT), with pulses (PULSE TIG) and electrode (MMA) in direct and alternating current (AC/DC). It is used in a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys, aluminum, magnesium and their alloys.

Key Features

  • PULSE: Particularly suitable for welding thin sheets (<1mm), requires minimal heating of the material and is suitable for welding in all positions. The increased pulse frequency causes increased arc stability and thus higher welding accuracy.
  • EASY PULSE: The pulse frequency “PULSE (Hz)” and the base current “(%) I” are automatically adjusted.
  • THINSPOT: Advanced function for TIG welding of thin metal sheets in an easy, fast, and precise way. Particularly designed for use in stainless steel, it can also be used in steel and titanium.
  • 9 customized welding programs.
  • Adjustable preheating for better results when welding with alternating current (AC).
  • Parameter adjustment during TIG welding: bi-level, start/end current intensity, spot time, pre/post gas, frequency, period, etc.
  • 2T mode: Press the clamp switch to weld and release it to stop.
  • 4T mode: Press and release the clamp switch to start, weld without holding the switch activated, and stop by pressing and releasing the switch again.
  • SPOT mode: Welding with the ability to adjust the welding time at the point.
  • TIG – HF: Arc start without contact.
  • TIG – LIFT: Arc start with contact.
  • VRD: Voltage reduction system that deactivates the power supply after the end of welding.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
TIG, MMA

Type

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
350 A

Welding Current (max): 350


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
400 V

Supply Voltage: 400


It is the supply voltage that the machine requires from the electrical grid.
Maximum Electrode Diameter
6 mm

Maximum Electrode Diameter: 6


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
36000 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
Yes

VRD


It is a voltage reduction device used in welding machines to improve user safety.
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
Yes

2T Operation


Press and hold the torch button to start welding. Once you release it, the welding stops.
4T Mode
Yes

4T Mode


Press the button once to start welding and release it. You do not need to keep the button pressed.
Spot Function
Yes

Spot Function


Applies a specific amount of current for a very short duration, creating a spot weld.
Pulsed
Yes

Pulsed


Instead of remaining constant during welding, the current increases and decreases in pulses at specified time intervals.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

SUPERIOR TIG 422 AC/DC-HF/LIFT Welding Inverter 350A

Specifications

  • Voltage: 400V, three-phase
  • Network frequency: 50 / 60 Hz
  • Current range: 5-350 A
  • Maximum current: 350 A - 35%
  • Current at 60%: 250 A
  • Maximum voltage (no load): 64 V
  • Maximum absorbed current: 21 A
  • Absorbed current at 60%: 13 A
  • Maximum absorbed power: 14 kW
  • Absorbed power at 60%: 8 kW
  • Network protection: 16 A
  • Efficiency: 85%
  • Power factor: 0.9
  • Used electrodes in DC (direct current): 1.6 - 6 mm
  • Protection degree: IP23
  • Dimensions: 53x24x45 cm
  • Weight: 36 Kg

Description

TELWIN TECHNOLOGY TIG 422 AC/DC-HF/LIFT VRD microprocessor-controlled TIG welding machine (high frequency HF or LIFT), with pulses (PULSE TIG) and electrode (MMA) in direct and alternating current (AC/DC). It is used in a wide range of materials such as steel, stainless steel, titanium, copper, nickel and their alloys, aluminum, magnesium and their alloys.

Key Features

  • PULSE: Particularly suitable for welding thin sheets (<1mm), requires minimal heating of the material and is suitable for welding in all positions. The increased pulse frequency causes increased arc stability and thus higher welding accuracy.
  • EASY PULSE: The pulse frequency “PULSE (Hz)” and the base current “(%) I” are automatically adjusted.
  • THINSPOT: Advanced function for TIG welding of thin metal sheets in an easy, fast, and precise way. Particularly designed for use in stainless steel, it can also be used in steel and titanium.
  • 9 customized welding programs.
  • Adjustable preheating for better results when welding with alternating current (AC).
  • Parameter adjustment during TIG welding: bi-level, start/end current intensity, spot time, pre/post gas, frequency, period, etc.
  • 2T mode: Press the clamp switch to weld and release it to stop.
  • 4T mode: Press and release the clamp switch to start, weld without holding the switch activated, and stop by pressing and releasing the switch again.
  • SPOT mode: Welding with the ability to adjust the welding time at the point.
  • TIG – HF: Arc start without contact.
  • TIG – LIFT: Arc start with contact.
  • VRD: Voltage reduction system that deactivates the power supply after the end of welding.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
TIG, MMA

Type

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
350 A

Welding Current (max): 350


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
35 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
400 V

Supply Voltage: 400


It is the supply voltage that the machine requires from the electrical grid.
Maximum Electrode Diameter
6 mm

Maximum Electrode Diameter: 6


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Weight
36000 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
No
VRD
Yes

VRD


It is a voltage reduction device used in welding machines to improve user safety.
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
Yes

2T Operation


Press and hold the torch button to start welding. Once you release it, the welding stops.
4T Mode
Yes

4T Mode


Press the button once to start welding and release it. You do not need to keep the button pressed.
Spot Function
Yes

Spot Function


Applies a specific amount of current for a very short duration, creating a spot weld.
Pulsed
Yes

Pulsed


Instead of remaining constant during welding, the current increases and decreases in pulses at specified time intervals.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
