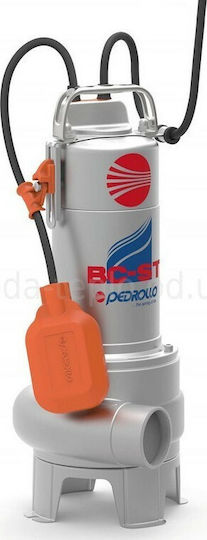

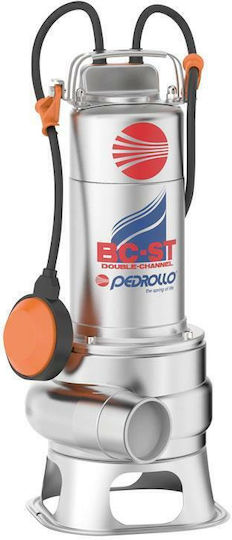

Pedrollo BCm-ST 15/50 Three-phase Pump Waste Water / Sewage 1.5hp 48SGM88B0A1U
Submersible Water Pumps

Pedrollo BCm-ST 15/50 Three-phase Pump Waste Water / Sewage 1.5hp 48SGM88B0A1U

Domestic, municipal, and industrial wastewater pump. Suitable for low-concentration wastewater in water (slurry).

  • Type: BCm 15/50-S
  • Pump Type: Dual-channel
  • Power Supply: Electricity
  • Motor Power: 1.50...

Domestic, municipal, and industrial wastewater pump. Suitable for low-concentration wastewater in water (slurry).

  • Type: BCm 15/50-S
  • Pump Type: Dual-channel
  • Power Supply: Electricity
  • Motor Power: 1.50 Hp - 1100 Watt
  • Voltage: 220 Volt / 50 Hz
  • Current Draw: 8.20 A
  • Use: Wastewater
  • Discharge Outlet: Φ 2" - 50 mm
  • Max Head: 15.00 m
  • Max Flow Rate: 45.00 m3/h
  • Body...
See full description See full description

  • Horsepower

    Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).

  • Voltage

    Three-Phase

    It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.

  • Power

    It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.

  • Manometric Height

    15

    The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

    • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
    • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
  • See all
469 00 €
469 Coins 469 Coins
Delivery by Thu, 06 Aug
5,50 €

Reduced Shipping

For purchases from Skroutz a discount is applied for this particular product.

Learn more
Do you want it with 0,50 € shipping?
From Thermocity 4.8 (72)
4.8 (72 reviews)
Εύοσμος, Θεσσαλονίκης
In-store pickup available
20+ pieces
See Water Pumps on the page of Thermocity
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

Domestic, municipal, and industrial wastewater pump. Suitable for low-concentration wastewater in water (slurry).

  • Type: BCm 15/50-S
  • Pump Type: Dual-channel
  • Power Supply: Electricity
  • Motor Power: 1.50 Hp - 1100 Watt
  • Voltage: 220 Volt / 50 Hz
  • Current Draw: 8.20 A
  • Use: Wastewater
  • Discharge Outlet: Φ 2" - 50 mm
  • Max Head: 15.00 m
  • Max Flow Rate: 45.00 m3/h
  • Body Material: Stainless Steel AISI 304
  • Impeller Material: Stainless Steel AISI 304
  • Fluid Temperature: 40 °C
  • Solid Passage: Φ 50 mm
  • Maximum Immersion Depth: 5 m
  • Cable Length: 10 m
  • Float Switch: Yes
  • Additional Features: Suitable for low-concentration wastewater in water - Features double sealing
  • Net Weight: 13.30 Kg
  • Product Dimensions: Length 19.70 cm, Width 19.00 cm, Height 44.70 cm

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
Waste Water / Sewage

Type

Waste Water / Sewage

Waste water / sewage pumps are used for pumping and transporting waste water, sewage, and other liquids containing solids or particles
Power Source
Electric

Power Source

Electric
The power supply refers to the pump's need for electrical energy from an external power source, such as single-phase or three-phase power.
Voltage
Three-Phase

Voltage

Three-Phase

It is mainly used for pumps and other industrial devices that require greater power or higher efficiency. Three-phase power supply is ideal for large installations or applications with increased energy demands.
Horsepower
1.5 hp

Horsepower

Horsepower indicates the kinetic power of the pump. Higher horsepower means more efficiency in water pumping, affecting the flow (l/h) and the head (m).
Power
1125 W

Power

It is the energy consumed by the motor to pump water. The greater the power, the more effectively it can lift and move water, especially over long distances or heights.
Cable Length
10 m

Features

Electronic Level Sensor
No

Electronic Level Sensor

It automatically activates the pump without the classic hanging float switch. It is ideal for narrow spaces and pits, as there is no risk of it getting stuck anywhere and flooding the area.
with Cutter Impeller
No

with Cutter Impeller

Components that chop, "cut" solid materials, such as organic waste or other particles, before they pass into the pump. They are mainly used in sewage or dirty water pumps, preventing clogging or damage to the system.
Float switch
Yes

Float switch

It is a mechanism that automatically controls the operation of the pump. When the water level reaches a predetermined height, the float activates the pump.
Outlet Nozzle
2"

Outlet Nozzle

The outlet nozzle refers to the point or the external diameter of the pump from which the pumped water or liquid exits. It is an important feature for determining the connection of the pump with the piping system and affects the flow capacity of the liquid.
Vortex
Yes

Vortex

The vortex system in submersible water pumps uses vortex technology to create a rotating water current, which helps in the efficient transfer of water, even when it contains particles or solids.

Pumping Specifications

Maximum Head Height
15 m

Maximum Head Height: 15


The Maximum Head Height refers to the maximum height at which the pump can lift water against resistance (such as pipes or filters). As the head height increases, the pump's flow rate decreases.

  • The maximum head height is considered by manufacturers to be the point where the water will just barely reach.
  • The maximum performance is considered by manufacturers to be the water flow at 0-1 meter head height.
Maximum Output
45 m³/h

Maximum Output

The maximum output or flow of a submersible water pump, as defined by the manufacturers, is the maximum amount of water the pump can move under ideal conditions, usually with zero head (i.e., no lift resistance).
Pump Submersion Depth
5 m
Maximum Particle Size
50 mm

Maximum Particle Size

Specifies the largest size of solid particles (such as sand, stones, or other impurities) that the device can pump without clogging or being damaged.
Shallow Suction
No

Shallow Suction

This function allows the pump to suck water from an extremely low level (up to 1-3 mm), ideal for flooded floors and basements.

Materials & Construction

Set
No
Stainless
Yes

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
