The degree of electrical protection is IPX5D. It is designed for both new installations and the replacement of existing boilers in a very simple way. Thanks to its electronic system developed jointly with Honeywell, and the correct assembly method, which makes it unique, it impresses with its ease of maintenance and durability.

• Fully metallic casing with epoxy polyester paint.
• Sound and thermal insulation with 8 mm thick thermal reflection layer.
• Fully metallic hydraulic connections.
• The aesthetic of the front panel features simple, engraved, curved lines.
• Two adjustment handles.
• Illuminated screen with timer for maximum electricity savings.
• Boiler manometer.

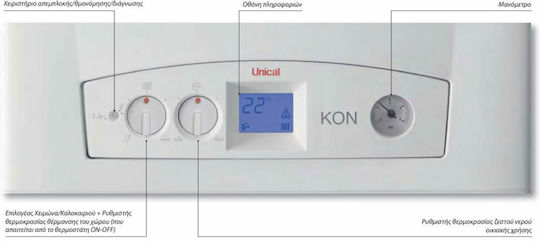

• Clean design and practical control panel with "Power save" screen (energy saving).

Technical Specifications:

• Power modulation ratio 1:8.
• Efficiency rate 107%.
• Primary heat exchanger made of aluminum/silicon/magnesium alloy, which has undergone anodizing process.
• Electronic domestic hot water operation.
• Low NOx thanks to the burner.
• Quick maintenance (pit stop).
• Domestic hot water production over 13.3 liters/min with ΔT 25 thanks to the plate heat exchanger.
• Stainless steel heat exchanger with 12 plates.
• Smart and simple control panel.
• Electronic inverter circulator.
• Domestic hot water production (Δt 25K) 13.2 l/min.
• Useful efficiency with nominal load in condensation (%) 100.9.
• Useful efficiency with minimum load in condensation (%) 107.2.
• Useful efficiency at 30% load (%) 100.1.
• Useful efficiency with nominal load 100% (%) 96.5.
• CO2 (min./max power) (%) 9.5 – 9.5.
• CO at 0% O2 min./max (ppm) 20 – 121.
• NOx (according to EN 297/A3 and EN 483) (mg/kWh) 39.
• Condensate production max (kg/h) 3.7. NOx category 5.
• Operating temperature in heating min./max (°C) 30 – 85.
• Expansion tank capacity (l) 8.
• Power supply voltage / Frequency (V-Hz) 230/50.
• Maximum absorbed power (W) 132.
