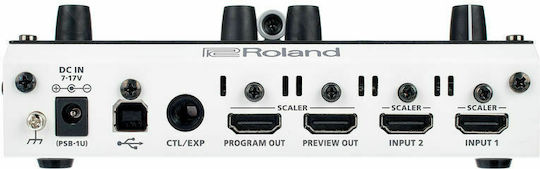

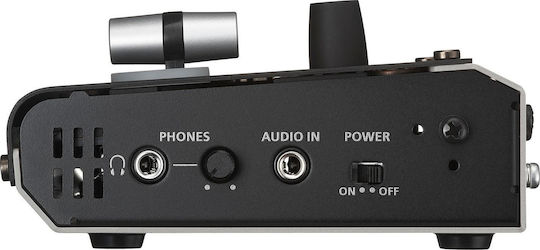

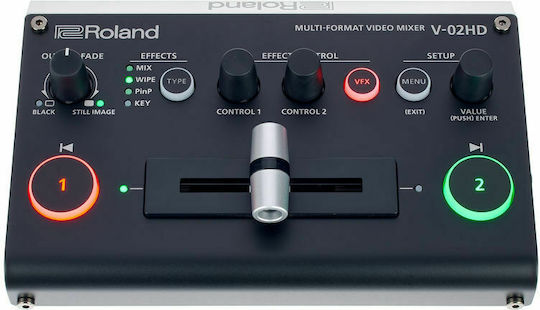

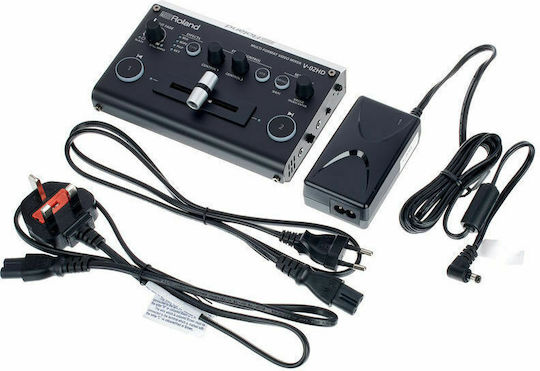

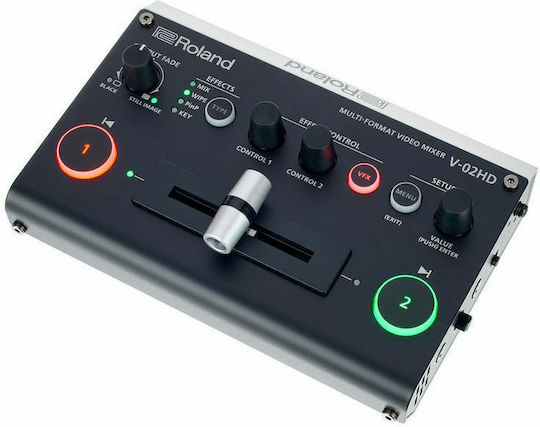

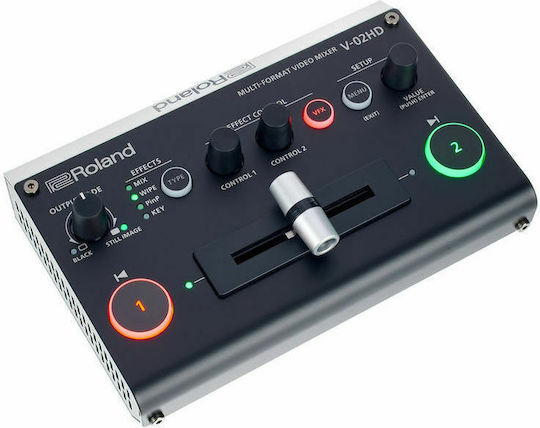

The V-02HD is a portable micro switcher that can handle HD files from the HDMI output by deactivating the connected recorder or streaming encoder, allowing the user to switch between cameras via a footswitch. It has the capability to mix audio from the cameras as well as from external sources, enabling audio monitoring through a dedicated headphone output, while ensuring a professional transition between PC and screens in a small presentation, maintaining high precision "pixel-accurate" with deep 10-bit 4:4:4. It includes 2 source selection, high-quality slide bar, 2 VFX Controls, Effect type selection among: mix, wipe, Pinp, KEY. Output fade knob. It also includes 2 HDMI Input type A, 1 HDMI Type A Preview Out, 1 HDMI Type A Program Out, headphone output with mini jack 10 ohm resistance, audio in with mini jack. Supported video formats on input: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p and on output: 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p. Audio Processing 48 kHz @ 24 bit / 2 channel. Dimensions 16 cm(W) x 10.8 cm (D) x 5.1 cm (H). Color black. Weight 600g.
- Type
- Switches
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
