MAXIMUM ENERGY USE
- Made from high-quality steel resistant to very high temperatures.
- Efficient combustion process and temperature maintenance for greater warmth thanks to the TERMOTEC lining of the combustion chamber.
- High smoke pipe positioned diagonally - increases the heat exchange surface.
- Fireplace doors resistant to pressure and stable thanks to the use of a closed profile.
- Combustion of fuel particles thanks to a reflector that extends the path of the flue gases.
- Air supplied externally only through an integrated air inlet.
- Triple air system of the combustion chamber.
MAXIMUM SAFETY
- Perfect tightness thanks to robust welds.
- All metal parts are laser-cut and bent on CNC machines.
- Front side of the insert equipped with heat-resistant ceramics that withstand temperatures up to 660°C.
ECOLOGICAL COMBUSTION
- The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 standard.
EASE OF USE
- Grate-free fireplace insert - complete combustion of wood into ash.
- The bottom plate of the insert is significantly reduced compared to the door.
- The door operates with a lift system - the window is raised.
- Mechanism that allows the side windows to open for easy cleaning.
- Reduced smoke deposition through a clean glass system.
MODERN DESIGN
- Fireplace with two glass surfaces at an angle.
- Decorative, heat-resistant glass that withstands temperatures up to 660°C.
- Product Number
- MBO/L/BS/G
Product Details
- Cassette
- No
- Air Ηeater
- No
- Air Duct Connection
- No
- Radiator
- No
- Chimney diameter
- 200 mm
- Material
- Steel
- Fuel
- Wood
- Weight
- 301 kg
Performance
- Energy Class
- A+
- Total Power
- 15 kW
- Power in the Air
- 15 kW
- Performance Level
- 83 %
- Water Consumption
- 6 kg/h
Attributes
- Windows
- Left Corner
- Container
- -
- Doors
- with Sliding Door

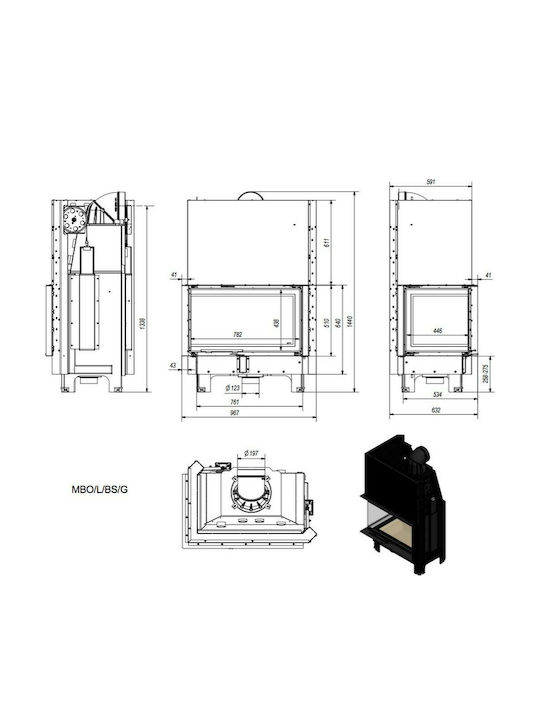

Dimensions
- Height
- 1440 mm
- Width
- 967 mm
- Length
- 591 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
