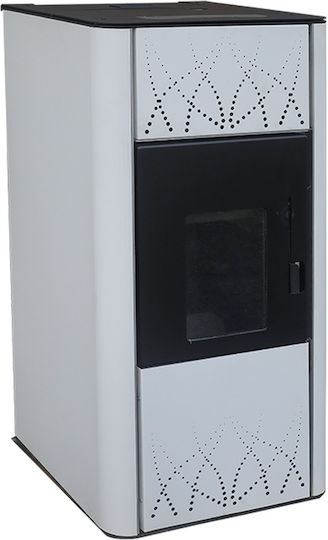

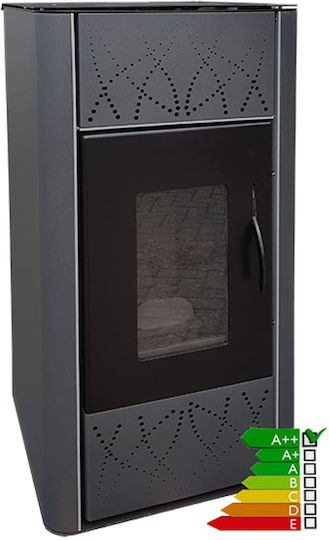

The BIODOM H25 is the first water boiler that uses the revolutionary BIO-LOGIC technology, which offers numerous advantages to the consumer. The BIO-LOGIC technology provides better performance, economy, and contributes to environmental protection with low emissions.
The BIODOM H25 boiler, thanks to BIO-LOGIC technology, automatically adjusts all operational parameters on a continuous basis. It automatically recognizes the quality of the pellets and adjusts their supply accordingly, as well as the air intake. The continuous automated adjustment of operational and combustion parameters of the BIODOM H25 guarantees optimal performance under all operating conditions and at any time.
TECHNICAL SPECIFICATIONS
- Heating surface: 70 – 200 m2
- Thermal power: 6 kW (6.9 – 24.6 kW)
- Thermal power in water: 7 kW (5.9 – 22.7 kW)
- Efficiency: over 92%
- Chimney diameter: Ø 80
- Water tank capacity: 42 l
- Electrical connection: 230 V 50 Hz
- Expansion tank and circulator: included
- Pellet tank: 45 kg
- Pellet consumption: min: 1.5 kg/h, max: 5.25 kg/h
- Dimensions H x W x D (cm): 120 x 65 x 56
- Weight: 233 kg
Dimensions
- Nominal Power Output Rate
- 21926 kcal/h
- Placement
- Floor
- Individual Unit
- Yes
- Condensation
- No
- Pyrolysis
- No
- Air Duct Boiler
- No
- with Burner
- No
Provision
- Petroleum
- No
- Gas
- No
- Of Wood
- No
- Pellet
- Yes
- Electric Current
- No
- Biomass
- No
