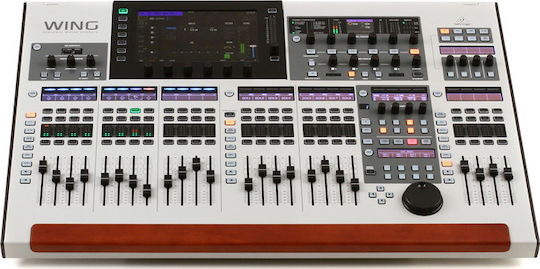

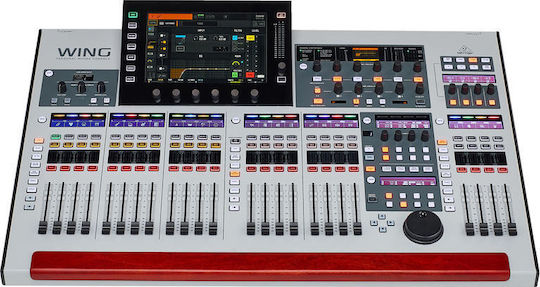

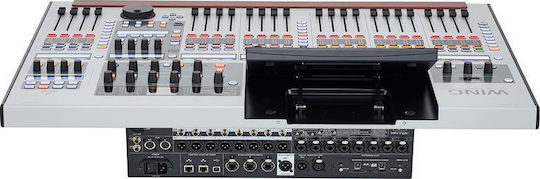

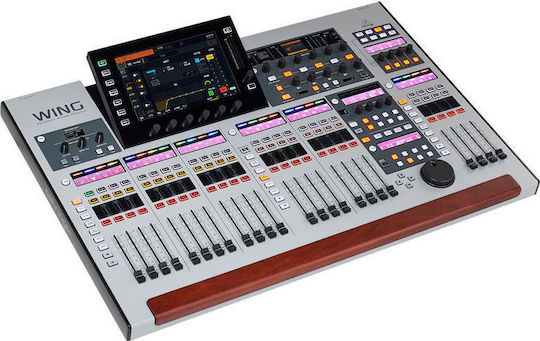

48-channel fully stereo digital mixer.
A new routing approach with an emphasis on sources instead of channels.
Full compatibility with Behringer X32 / Midas M32 consoles and stage boxes.
- 40 stereo inputs.
- 8 stereo AUX inputs.
- 28 Buses: 16 stereo AUX, 8 stereo matrices, 4 stereo mains.
- 24 faders in 3 fully programmable sections.
- 10'' touch display with adjustable angle.
- Programmable Custom Control section.
- 8 Midas Pro microphone preamps.
- 8 Midas analog line outputs.
- 8 AUX inputs.
- 6 AUX outputs and 2 monitor outputs: 6.3 mm balanced mono jack.
- 2 headphone outputs.
- 3 AES50 ports: 48 x 48 channels per port - cable length up to 80 meters.
- MIDI input/output.
- 2 programmable GPIOs.
- 48 x 48 channel USB interface.
- Expansion slot, including WING-LIVE card.
- 64 x 64 channel SD recorder/player.
- Additional cards available optionally (Dante, MADI, SoundGrid).
- StageCONNECT 32-channel port for personal monitoring.
- 16 FX engines: 8 premium, 8 standard.
- 6-Band EQ on inputs.
- 8-Band EQ on outputs.
- Dimensions (H x W x D): 201 x 870 x 575 mm.
- Weight: 24 kg.
Dimensions
- Type
- Console
- Type
- Digital
- Active
- No
- Channels
- 48
- Phantom Power
- No
- Effects
- Yes
- Width
- 870 mm
- Height
- 201 mm
- Length
- 575 mm
Connectivity
- USB (for PC)
- Yes
- XLR Inputs
- 8
- Bluetooth
- No
- Headphones
- Yes
- Ethernet
- Yes
- RCA
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
