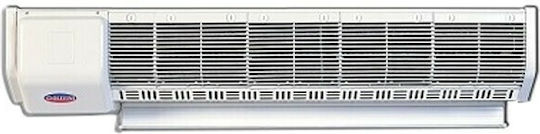

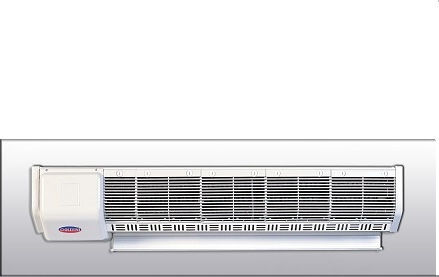

Olefini ΑWH-33W Water Heated Air Curtain with Maximum Air Supply 1450m³/h and Remote Control 114.9cm
Air Curtains

Olefini ΑWH-33W Water Heated Air Curtain with Maximum Air Supply 1450m³/h and Remote Control 114.9cm

Max door width: 1.0m

Max door height: 3.5m

Max air exit speed: 9.0/7.5 m/sec

Max air flow: 1740/1450m3/h

Motor input power: 350W

Motor operating capacitor: 8μF

Total water volume: 0.8lit

Noise level...

Max door width: 1.0m

Max door height: 3.5m

Max air exit speed: 9.0/7.5 m/sec

Max air flow: 1740/1450m3/h

Motor input power: 350W

Motor operating capacitor: 8μF

Total water volume: 0.8lit

Noise level at 1m: 65/62dB(A)

  • Total length: 1149mm
  • Total width: 277mm
  • Height: 205mm
  • Exit nozzle length: 900mm
  • Exit nozzle width: 76mm
  • Exit nozzle height: 64mm
  • Weight: 26Kg
    • ...
See full description See full description

Top specs

  • Width

    114.9

    When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

  • Maximum Airflow

    The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.

  • Maximum Installation Height

    3.5

    Installation height according to the model specifications.

  • Type

    Water Heated

    Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
  • with Remote Control
  • See all
879 98 €
Preparation for shipment within 6 days
Free  shipping cost
View at store
From Varelas-shop
Λιβαδειά, Βοιωτίας
Shop homepage
Review the product
Product report

Description

Description

Max door width: 1.0m

Max door height: 3.5m

Max air exit speed: 9.0/7.5 m/sec

Max air flow: 1740/1450m3/h

Motor input power: 350W

Motor operating capacitor: 8μF

Total water volume: 0.8lit

Noise level at 1m: 65/62dB(A)

  • Total length: 1149mm
  • Total width: 277mm
  • Height: 205mm
  • Exit nozzle length: 900mm
  • Exit nozzle width: 76mm
  • Exit nozzle height: 64mm
  • Weight: 26Kg

Air input temp: +15ºC

Water input temp: +70ºC

Water flow: 0.6lit/sec

Thermal power: 12.5/11.3Kw

Air exit temperature: 35.8/37.7 ºC

Water exit temperature: 59.9/60.8 ºC

Water pressure drop ΔΡ: 3.6kPa

Air input temp: +15ºC

Water input temp: +90ºC

Water flow: 0.6lit/sec

Thermal power: 17.2/15.6Kw

Air exit temperature: 43.7/46.3 ºC

Water exit temperature: 75.9/77.2 ºC

Water pressure drop ΔΡ: 3.5kPa

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
1450 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
3.5 m

Maximum Placement Height: 3.5


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
Yes
Motor Position
Left
Width
114.9 cm

Width: 114.9


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Max door width: 1.0m

Max door height: 3.5m

Max air exit speed: 9.0/7.5 m/sec

Max air flow: 1740/1450m3/h

Motor input power: 350W

Motor operating capacitor: 8μF

Total water volume: 0.8lit

Noise level at 1m: 65/62dB(A)

  • Total length: 1149mm
  • Total width: 277mm
  • Height: 205mm
  • Exit nozzle length: 900mm
  • Exit nozzle width: 76mm
  • Exit nozzle height: 64mm
  • Weight: 26Kg

Air input temp: +15ºC

Water input temp: +70ºC

Water flow: 0.6lit/sec

Thermal power: 12.5/11.3Kw

Air exit temperature: 35.8/37.7 ºC

Water exit temperature: 59.9/60.8 ºC

Water pressure drop ΔΡ: 3.6kPa

Air input temp: +15ºC

Water input temp: +90ºC

Water flow: 0.6lit/sec

Thermal power: 17.2/15.6Kw

Air exit temperature: 43.7/46.3 ºC

Water exit temperature: 75.9/77.2 ºC

Water pressure drop ΔΡ: 3.5kPa

Manufacturer

Manufacturer Details

Warnings & Safety Information
Type
Water Heated

Type

Water Heated
Water heated air curtains use hot water from the central heating system to warm the air. The hot water passes through a heat exchanger and heats the air flowing through the air curtain. For their installation, they require connection to the central heating system and the presence of pipes for the transfer of hot water
Maximum Air Supply
1450 m³/h

Maximum Air Supply

The maximum air flow, or air volume, is measured in cubic meters per hour (m³/h). This shows us the power of the air provided by an air curtain, and as this number increases, so does the volume/power of the air.
Maximum Placement Height
3.5 m

Maximum Placement Height: 3.5


Installation height according to the model specifications.
Operating Voltage
Single-phase
with Remote Control
Yes
Motor Position
Left
Width
114.9 cm

Width: 114.9


When the entrance is larger than the unit, it is recommended to install two or more units in parallel. In this case, make sure to leave gaps of 20-40 mm between the units.

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
