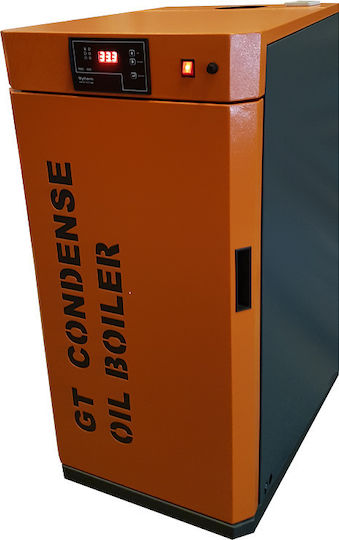

Mytherm Condensing Oil Unit (GT Condense hot water) Models: GT 20kW / 25kW / 35kW / 40kW / 50 kW

The GT and GTW oil boilers are modern, innovative boilers with very high efficiency that meet Condensing standards. The GT and GTW units are made from high-strength ST37 steel sheets and 316 L stainless steel sheets, 316L stainless steel retarders, and 316L stainless steel tubes.

For easy removal of combustion residues and condensates, they feature a stainless steel chamber for collecting combustion residues and condensates at the bottom of the boiler. They also have a permanent connection arrangement - neutralizer. They are distinguished by their very high efficiency - over 105% for more economical consumption.

They are manufactured in power models from 20 to 50 kW and, upon request, in larger sizes. They can be installed in an array operating at 0 -50 -100, providing greater power in cases of need.

They feature an electronic panel to maximize efficiency and economy as well as boiler safety. They have the ability for fault self-diagnosis and abundant production of hot water when requested.

Sound level: 55 dB

The GT and GTW units include:

• Electronic controller
• Anti-freeze protection
• High-efficiency Inverter Erp circulator with high head (70 Kpa)
• High backpressure and efficiency oil burner
• Heavy-duty expansion tank
• Stainless steel heat exchanger for hot water production

GTW Model
