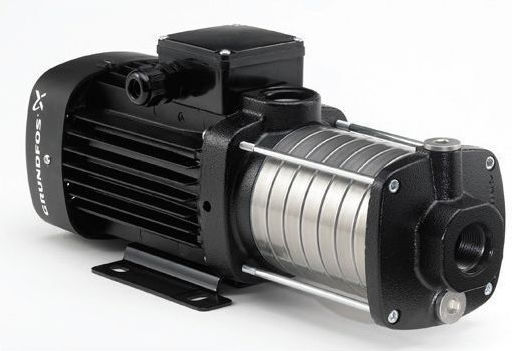

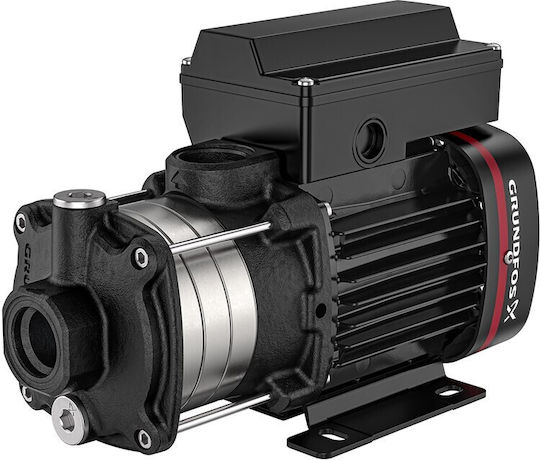

Grundfos CM-A 5-5 CM5 Electric Surface Water Pump 1.47hp Three-Phase
Surface Water Pumps

Grundfos CM-A 5-5 CM5 Electric Surface Water Pump 1.47hp Three-Phase Code: 98694013

GRUNDFOS pumps, high performance and reliability, suitable for domestic, municipal, and industrial applications.

The CM is a reliable, quiet, and compact horizontal end-suction pump.

CM-A SERIES:

  • ...

GRUNDFOS pumps, high performance and reliability, suitable for domestic, municipal, and industrial applications.

The CM is a reliable, quiet, and compact horizontal end-suction pump.

CM-A SERIES:

  • Pump head and base made of cast iron.
  • Other parts in contact with the liquid are made of AISI 304.

Technical Characteristics:

  • Power P2 (Kw): 1.1
  • Power P2 (Hp):...
See full description See full description

  • Power Supply

    Electric

    Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
  • Voltage Three-Phase

  • Pressure

    The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).
  • See all
520 00 €
520 Coins 520 Coins
Delivery up to 10 days
16,00 €

Reduced Shipping

For purchases from Skroutz a discount is applied for this particular product.

Learn more
Delivery to your floor available
Do you want it with 6,00 € shipping?
From Malliotakis
Ηράκλειο Κρήτης, Ηρακλείου
See Water Pumps on the page of Malliotakis
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come and pick it up (completely free of charge if you have Skroutz Plus) and refund your money.

You can select additional services after adding the product to the cart.
Review the product
Product report

Description

Description

GRUNDFOS pumps, high performance and reliability, suitable for domestic, municipal, and industrial applications.

The CM is a reliable, quiet, and compact horizontal end-suction pump.

CM-A SERIES:

  • Pump head and base made of cast iron.
  • Other parts in contact with the liquid are made of AISI 304.

Technical Characteristics:

  • Power P2 (Kw): 1.1
  • Power P2 (Hp): 1.47
  • Voltage (Volt): 380 Volt/50 Hz
  • Max. head (M): 49
  • Max. flow (m3/h): 6.2
  • Max. pressure at specified temperature: 10 bar / 40 °C
  • Max. pressure at specified temperature: 6 bar / 90 °C
  • Inlet diameter Φ (Inch-mm): 1 1/4" - 31.75mm
  • Outlet diameter Φ (Inch-mm): 1" - 25mm
  • Pump casing: Cast iron
  • Impeller: Stainless steel
  • Net weight: 15.5 kg
  • Gross weight: 18 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Product Number
98694013

Main Specifications

Type
Multistage

Type

Multistage
Pumps with 3 or more blades exert high pressure and achieve maximum efficiency. Ideal for homes with low water pressure.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1.47 hp
Power
1100 W
Pressure
10 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

GRUNDFOS pumps, high performance and reliability, suitable for domestic, municipal, and industrial applications.

The CM is a reliable, quiet, and compact horizontal end-suction pump.

CM-A SERIES:

  • Pump head and base made of cast iron.
  • Other parts in contact with the liquid are made of AISI 304.

Technical Characteristics:

  • Power P2 (Kw): 1.1
  • Power P2 (Hp): 1.47
  • Voltage (Volt): 380 Volt/50 Hz
  • Max. head (M): 49
  • Max. flow (m3/h): 6.2
  • Max. pressure at specified temperature: 10 bar / 40 °C
  • Max. pressure at specified temperature: 6 bar / 90 °C
  • Inlet diameter Φ (Inch-mm): 1 1/4" - 31.75mm
  • Outlet diameter Φ (Inch-mm): 1" - 25mm
  • Pump casing: Cast iron
  • Impeller: Stainless steel
  • Net weight: 15.5 kg
  • Gross weight: 18 kg

Manufacturer

Manufacturer Details

Warnings & Safety Information
Product Number
98694013

Main Specifications

Type
Multistage

Type

Multistage
Pumps with 3 or more blades exert high pressure and achieve maximum efficiency. Ideal for homes with low water pressure.
Power Source
Electric

Power Source

Electric
Ideal for continuous and demanding operation (e.g. for a flooded field and/or basement) 2. More economical consumption than gasoline-powered pumps 3. More environmentally friendly
Placement
Horizontal
Automatic Suction
No

Automatic Suction

The engine is automatically activated when the water in the tank falls below the lower limit. Similarly, it is deactivated when the tank is filled.
Centrifugal
No

Centrifugal

Pumps with impellers that enhance water flow.
Firefighting
No
Power Type
Three-Phase
Set
No

Technical Specifications

Horsepower
1.47 hp
Power
1100 W
Pressure
10 bar

Pressure

The unit of measurement for the pressure exerted by the pump on the water (For example, for a height of 10 meters of water, a pressure of 1 bar is required).

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
