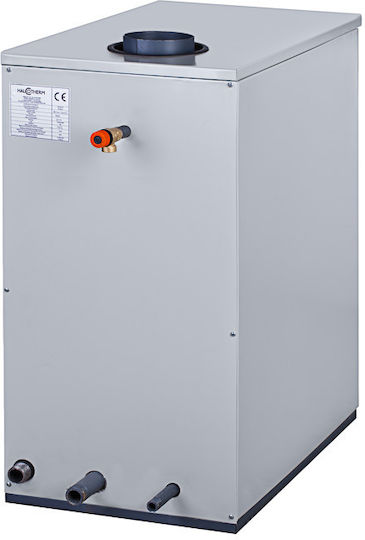

Halcotherm, responding to the market's demands for independent heating of single-family homes, offices, shops, apartments, and holiday homes, has manufactured the M3D Oil Individual Unit (3-pass flue gas). The M3D unit has been designed and studied according to ELOT standards, with approval number ELOT 52. It is made of high-quality steel ST 37-2, in accordance with the strict German specifications DIN 4702.

• It consists of cast iron flue gas diaphragms, specially shaped to create a circular swirl of flue gases in the combustion chamber.
• Advantages:
• Economical solution for individual heating with an excellent Quality-Price ratio.
• Efficiency up to 90%.
• Quiet and safe operation.
• Easy and simple maintenance - cleaning.
• Long lifespan.
• Elegant design, not exceeding the dimensions of a washing machine.
• External metal covers, painted (at 200°C) with electrostatic, anti-corrosive paint.

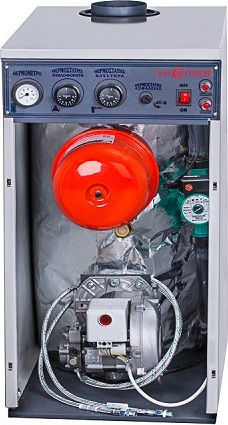

The M3D Oil Individual Unit consists of:

• Complete combustion control panel.
• European burner.
• 3-speed circulator.
• Expansion tank.
• Automatic air vent.
• 3 bar safety valve.
• Thermal insulation.
• Cast iron flue gas diaphragms.

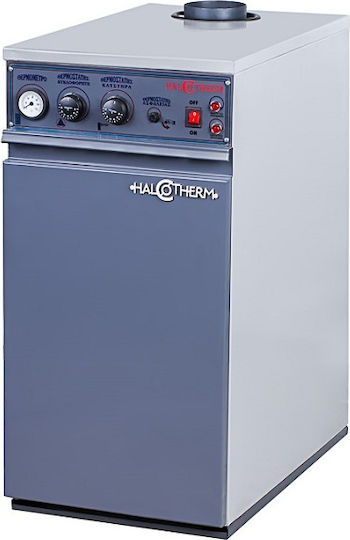

The control panel includes:

• Main operation switch.
• Thermometer.
• Burner thermostat.
• Circulator thermostat.
• Circulator indicator.
• Burner lockout indicator.

TYPE:

• M3D 20: POWER (Kcal/h) 20,000, WIDTH (cm) 43, HEIGHT (cm) 90, LENGTH (cm) 72
• M3D 25: POWER (Kcal/h) 25,000, WIDTH (cm) 43, HEIGHT (cm) 90, LENGTH (cm) 72
• M3D 30: POWER (Kcal/h) 30,000, WIDTH (cm) 50, HEIGHT (cm) 96, LENGTH (cm) 78
• M3D 35: POWER (Kcal/h) 35,000, WIDTH (cm) 50, HEIGHT (cm) 96, LENGTH (cm) 78
• M3D 40: POWER (Kcal/h) 40,000, WIDTH (cm) 55, HEIGHT (cm) 98, LENGTH (cm) 89
• M3D 50: POWER (Kcal/h) 50,000, WIDTH (cm) 55, HEIGHT (cm) 85, LENGTH (cm) 90

The above dimensions may change in the future without notice if new improvements are required. Before delivery, the M3D Individual Units (3-pass) undergo quality control and normal operation testing for burner inspection, as well as pressure testing at least 6 bar for leak testing.
