Wall Mount Rack 19” (Double - “Modular”) 12U

• Height: 635mm
• Width: 600mm
• Depth: 550mm

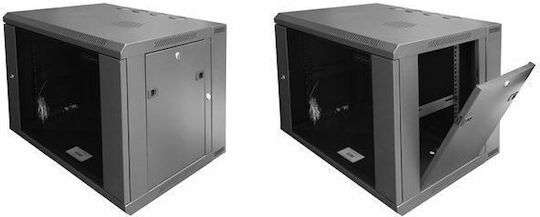

With a “Modular” hinged rear section equipped with a security lock for easy & quick installation.

Door with 5mm thick glass (secure) and security lock.

Removable door with option for opening direction (Left-Right).

Adjustable 4 columns (19'' brackets) for equipment support “front-back”:

• They feature numbered markings per U.
• Two rows of vertical cutouts 19” (front and side) for equipment installation.
• They have undergone special grinding treatment on the edges to protect both the equipment and the installer during installation.

Additional:

• (2) adjustable horizontal device support brackets 1U (left - right).
• Choice of 8 entry points (top & bottom) for easy cable passage - sorting with 4 round openings on the roof and 4 at the bottom floor from plastic “modular-detachable” cable protection caps.
• Ergonomic design of vents (top & bottom).
• Prepared wait for up to (2) ventilation fans.
• Central grounding point (with security screw) as well as grounding cable inside the 19” brackets (columns).
• Ability for wall mounting either with the “optional” detachable rear support bar or with the (4) rear support sockets (with screws & heavy-duty upat metal).

Material: High-quality SPCC steel with a thickness of ~ 1.5mm (static load capacity ~ 70kg).

Coating: Electrostatically applied polyester powder: Anthracite RAL 9004.
