- Aluminum frame, particularly resistant to adverse conditions (high humidity - coastal areas).
- Strong side and rear insulation (20mm fiberglass & 35mm rock wool), which minimizes thermal losses in areas with low seasonal temperatures.
- Special prismatic glass, resistant to hail (solar tempered glass).
- Absorber with aluminum tubes, with blue selective titanium coating. The titanium-coated absorber is ideal for areas with high diffuse radiation and low temperatures, absorbing up to 16% more solar radiation in the winter months compared to simple black chrome absorbers. This coating method is non-toxic, does not pollute the environment, and maintains its mechanical and thermal properties stable at very low and high temperatures.

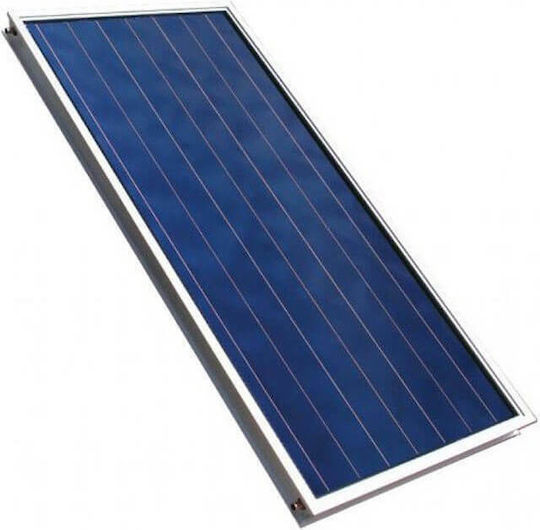

Flat solar collector, robust construction, new technology suitable for all forced circulation solar systems. The construction method and materials result in high absorption of solar radiation and thermal energy output, even during periods with insufficient sunlight.
Basic Technical Specifications
- Aluminum frame, particularly resistant to adverse conditions (high humidity - coastal areas).
- Strong side and rear insulation (20mm fiberglass & 35mm rock wool), which minimizes thermal losses in areas with low seasonal temperatures.
- Special prismatic glass, resistant to hail (solar tempered glass).
- Absorber with aluminum tubes, with blue selective titanium coating. The titanium-coated absorber is ideal for areas with high diffuse radiation and low temperatures, absorbing up to 16% more solar radiation in the winter months compared to simple black chrome absorbers. This coating method is non-toxic, does not pollute the environment, and maintains its mechanical and thermal properties stable at very low and high temperatures.
Collector Dimensions
- Dimensions: 2050x1275x90cm
- Gross Surface Area: 2.61m2
- Test Pressure: 10bar
- Maximum Operating Pressure: 7bar
Technical specifications
- Absorber: single aluminum sheet
- Total thermal gain: 95% ± 2%
- Total thermal loss: 5% ± 3%
- Coating: selective titanium
- Diameter of horizontal tubes: (22mm)
- Diameter of vertical tubes: (10mm or 8mm)
- Material: copper
- Test pressure: 10 bar
- Max operating pressure: 7 bar
- Frame: heavy-duty aluminum profile
- Rear insulation: 35-40 mm rock wool
- Side insulation: 20 mm fiberglass
- Cover: unbreakable glass
- Thickness: 4mm
- Sealing: EPDM rubber and clear silicone
- Antifreeze medium: glycol suitable for solar collectors
- Type
- Selective
- Collector Surface m²
- 2.62 m²
- Placement
- Vertical
Important information
