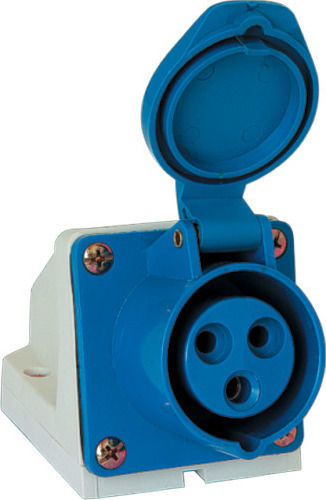

Made from special high-quality plastic with alloys for protection against aging during sun exposure and for improved mechanical strength.
They offer a reliable connection and a high level of protection against electrical current.
Additionally, they provide an IP protection rating not less than IP44/67.
They are designed for surface-mounted or flush-mounted installation, of mobile or stationary type.
Technical specifications:
- Rated voltage: 500V
- Rated short-circuit current: according to the installed protection in the panels
- Surge withstand capability: 8kV
- Mechanical wear resistance: 3000 cycles
- IP code: IP44/67
- Plastic: UV resistance
- Ambient temperature: -5° to +65°С
- Altitude: up to 2000m
- Sockets: 6h
Applications:
- Industrial buildings
- Electrical panels
- Generators
- Electric motors
Specifications:
- Standards: EN60309-1; EN60309-2
- Protection level: IP44
- Rated voltage: 230V
- Rated current: 16A
- Number of poles: 3
- Brand: ELMARK
- Model: HT|stationary type
