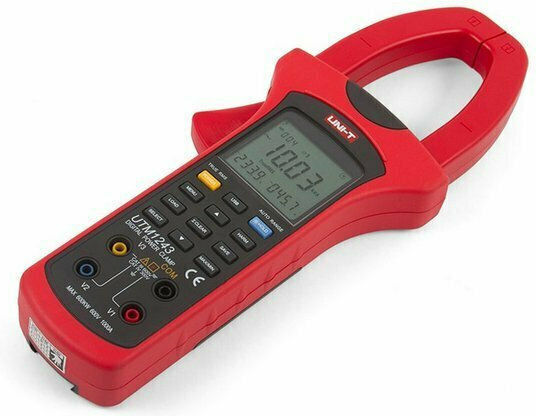

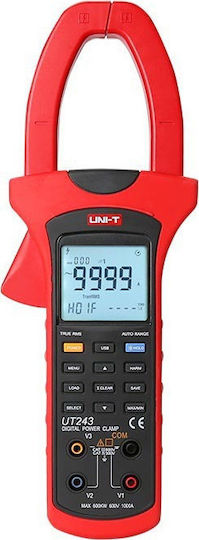

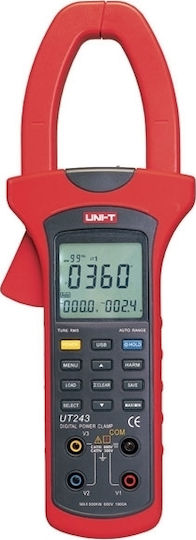

Uni-T Clamp Meter Digital 1000A AC True RMS with Test Leads UT243
Clamp Meters

Uni-T Clamp Meter Digital 1000A AC True RMS with Test Leads UT243

The UT243 is an intelligent, portable, and stable power and harmonic clamp meter, with functions of a digital ammeter and power meter. It can measure voltage, current, active/reactive power, power...

The UT243 is an intelligent, portable, and stable power and harmonic clamp meter, with functions of a digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle, and much more. The UT243 series can measure individual harmonic components up to 20 times.

  • True RMS voltage/current measurement
  • Three-phase...
See full description See full description
311 13 €
312 Coins 312 Coins
Delivery Tue, 30 Jun - Mon, 06 Jul
Free   shipping cost
Sent from Romania
From ForIT 4.7 (11)
4.7 (11 reviews)
Romania
1 piece
See Multimeters on the page of ForIT
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

The UT243 is an intelligent, portable, and stable power and harmonic clamp meter, with functions of a digital ammeter and power meter. It can measure voltage, current, active/reactive power, power factor, phase angle, and much more. The UT243 series can measure individual harmonic components up to 20 times.

  • True RMS voltage/current measurement
  • Three-phase 3-wire, 3-phase 4-wire, and single-phase 2-wire measurements
  • Dual display LCD with 10000 counts
  • Phase sequence detection
  • Max/Min functions
  • Auto range, auto power off, backlight, low battery indication
  • Equipped with USB interface and PC software CD

Specifications

  • AC current (A) 1000A ±(2%+5)
  • AC voltage (V) 600V ±(1.2%+5)
  • Frequency (Hz) 40Hz~80Hz ±(0.5%+5)
  • Active power (W) 0.01kW~600kW ±(3%+5)
  • Apparent power (VA) 0.01kVA~600kVA ±(3%+5)
  • Reactive power (VAr) 0.01kVAr~600kVAr ±(4%+5)
  • Power factor 0.3~1 ±0.022
  • Phase angle (°) 0°~360° ±2°
  • Active energy (Wh) 1kWh~9999kWh ±(3%+2)

General Characteristics

  • Power 1.5V battery (R6) x 4
  • Display 46mm x 42mm
  • Product color Red and gray
  • Net product weight 601g
  • Product size 303mm x 112mm x 39mm

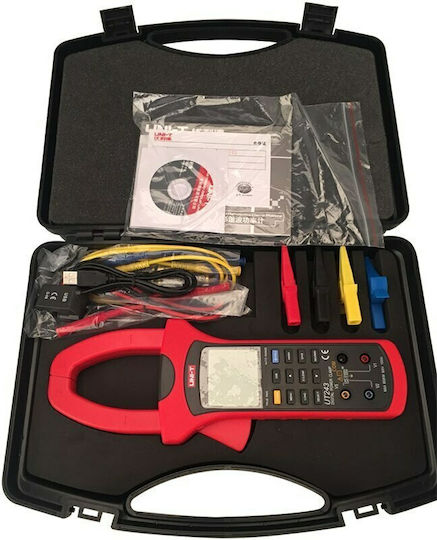

  • Standard accessories Batteries, test leads, alligator clips, USB interface cable, PC software CD


Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

True RMS
Yes

True RMS


The True-RMS method will provide the correct value of the alternating quantity regardless of its waveform.
with Test Leads
Yes

with Test Leads


It has measurement terminals that have a red wire for positive and a black wire for negative.
AC Current
1000 A
Indication
Digital
Bluetooth
No
Safety Category
CAT III

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
