The integrated VRM of the TUF GAMING B560 motherboards series uses 8+1 power stages DrMOS that combine high-side and low-side MOSFETs and drivers in a single package, providing the power and efficiency required by 11th generation Intel Core processors.
Specifications
Description
Product Details
- Size
- Micro ATX
- Type
- Desktop
Processor
- Supported Processors
- Intel
- Models
- Celeron Dual Core, Core i5, Core i7, Core i9, Pentium Dual Core
- Supported CPU Generation
- Comet Lake
- Socket
- 1200
Chipset
- Model
- Intel B560
Memory
- Memory type
- DDR4
- Quantity
- 4 DIMM Slots
- Memory Speeds
- 2133, 2400, 2666, 2800, 2933, 3200, 3333OC, 3466OC, 3600OC, 3733OC, 4000OC, 4266OC, 4400OC, 4600OC, 4800OC, 5000OC
- Memory Channels
- Dual Channel
Internal Connectors
- PCI Express x16 3.0
- 1 Slot
- PCI Express x16 4.0
- 1 Slot
- SATA III 6Gb/s
- 6 Port
- M.2 Type
- 1 PCIe 3.0 Port, 1 PCIe 4.0 Port
- M.2 Slots
- 0

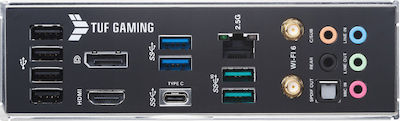

External Connectors
- Rear USB-A outputs
- 4 USB 2.0 Ports, 4 USB 3.2 Ports
- Rear USB-C outputs
- 1 USB 3.2 Port
- Ethernet (LAN)
- 1
- Screen Connections
- DisplayPort, HDMI
Specifications
- RGB Lighting
- No
- WiFi/Bluetooth
- Yes
- Extra
- RGB Header
Sound
- Sound Card Channels
- 7.1
- Additional Audio Connections
- Optical S/PDIF
Top Specs
- Memory
- -
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
Description

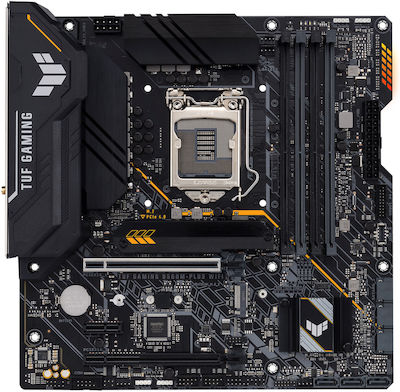

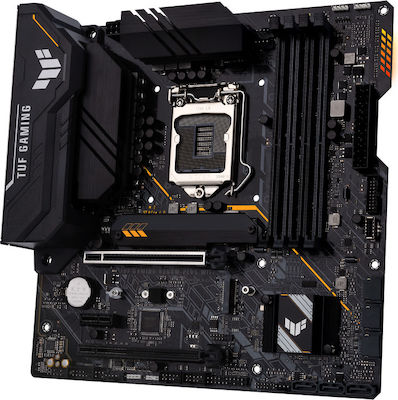

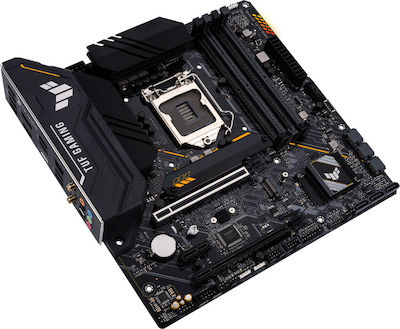

The Asus TUF Gaming B560M-PLUS WiFi motherboard is designed for users who are looking for a reliable and efficient solution for building a computer with an 11th generation Intel Core processor (Rocket Lake-S) and need a small-sized Micro-ATX motherboard. It offers advanced features and capabilities such as support for PCIe 4.0, up to 128GB DDR4 RAM, multiple USB ports, 7.1-channel audio output, and customization options with advanced BIOS functions and RGB lighting.
The Asus TUF Gaming B560M-PLUS WiFi also offers high durability and reliability as it belongs to Asus's TUF Gaming series, which is designed for durability and reliability in challenging usage conditions, with TUF quality and reliability certification. It is suitable for users who are looking for a reliable solution for gaming, multimedia editing, office tasks, and other daily tasks, and prefer a small-sized motherboard for application in smaller cases or limited spaces.
Overall, the Asus TUF Gaming B560M-PLUS WiFi motherboard is aimed at users who are looking for a reliable, efficient, and durable solution for creating a compact-sized desktop computer, suitable for gaming, multimedia, and daily tasks.
DrMOS
The integrated VRM of the TUF GAMING B560 motherboards series uses 8+1 power stages DrMOS that combine high-side and low-side MOSFETs and drivers in a single package, providing the power and efficiency required by 11th generation Intel Core processors.
6-layer motherboard
The multiple layers of the PCB board remove heat from critical components, providing greater room to push CPUs beyond standard speeds.
Shop with confidence
The TUF Gaming Alliance is a collaboration between ASUS and trusted commercial PC component brands to ensure compatibility with a wide range of components, such as PC cases, power supplies, CPU coolers, memory kits, and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even further.
SafeSlot Core+
The SafeSlot Core+ is ASUS's exclusive PCIe slot, reinforced with a one-piece stainless steel bracket to shield the slot and protect it from damage. The metal cover is securely fastened to the slot with hooks, and the entire assembly is firmly anchored to the PCB with reinforced solder points to provide a secure base for heavy-duty graphics cards.
TUF LANGuard
TUF LANGuard is a military-grade innovation that incorporates advanced signal coupling technology and top-quality surface-mounted capacitors to improve performance, protecting the motherboard from lightning and static electricity.
Intel WiFi 6
The Intel WiFi 6 unit is compatible with the 802.11ax standard and increases the theoretical maximum bandwidth to 2.4 Gbps. Perhaps more importantly for power users, it is optimized for more efficient operation in crowded networks with high competition. Combine your motherboard with ASUS WiFi 6 routers to fully enjoy the networking capabilities of WiFi 6.
Surpass the competition
A well-tuned system deserves a corresponding aesthetic. ASUS Aura offers full control of RGB lighting with a variety of functional options for built-in RGB LED lights as well as for connected RGB strips. And all of this can be synchronized with an ever-expanding hardware portfolio with Aura capability.
The addressable Gen 2 RGB header is now able to detect the number of LEDs on second-generation addressable RGB devices, allowing the software to automatically adjust lighting effects on specific devices. The new header also offers backward compatibility with existing Aura RGB devices.
