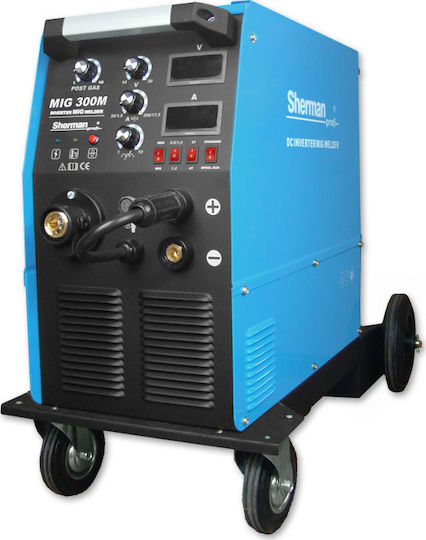

The MIG 300M welder is a second-generation welding machine manufactured with IGBT technology. It is used for manual welding of steel and non-ferrous metals with shielding gas (MIG / MAG method) and with a coated electrode (MMA method). It can also be used for gasless welding with flux-cored wire.
The device is powered by a three-phase voltage of 3x400V. It is equipped with a professional 4-roll wire feeder with smooth adjustment of the feeding speed. It also has smooth adjustment of the welding voltage in the MIG / MAG welding and the welding current in the MMA method. The devices are equipped with gas delay control, 2T / 4T switch, and induction control which are useful for welding thin surfaces. They are protected from overload with thermal protection.
The set includes:
- MIG TW-36 torch, 4 meters long
- Electrode cable
- Ground cable with clamp
- Welding shield with hammer
Power supply voltage [V] AC 3x400 50Hz
Welding methods MIG, MMA
Manufacturing technology IGBT
Welding current [A] 300
Duty cycle [%] 60
Maximum current consumption [A] 15.4 (MIG) / 16.5 (MMA)
Maximum power consumption [kVA] 10
Current welding adjustment Smooth
Wire [mm] 200, 300
Weight [kg] 60
Dimensions [mm] 930 x 435 x 695
Features 2T / 4T, induction adjustment, 4-roll feeder, Spool Gun option
Dimensions
- Type
- MIG
- Welding Current (max)
- 300 A
- Weight
- 25000 gr
Additional Features
- Inverter
- Yes
- IGBT
- Yes
- VRD
- No
- with Voltage Stabilizer
- No
- for Generator with AVR
- No
Features
- Hot Start
- No
- Anti Stick
- No
- Arc Force
- No
- 2T Operation
- No
- 4T Mode
- No
- Spot Function
- No
- Pulsed
- No
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
