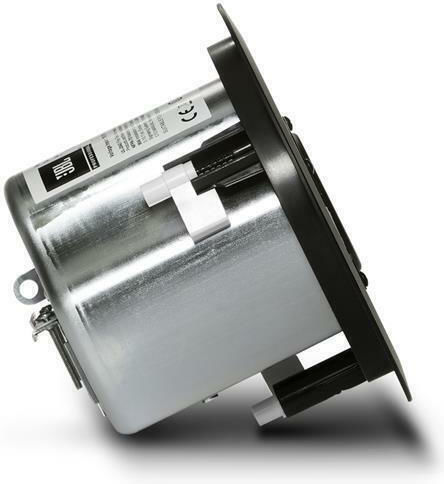

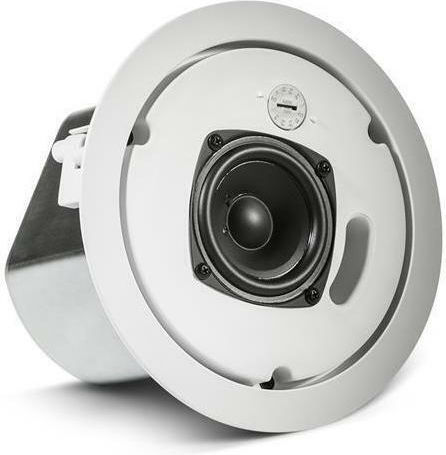

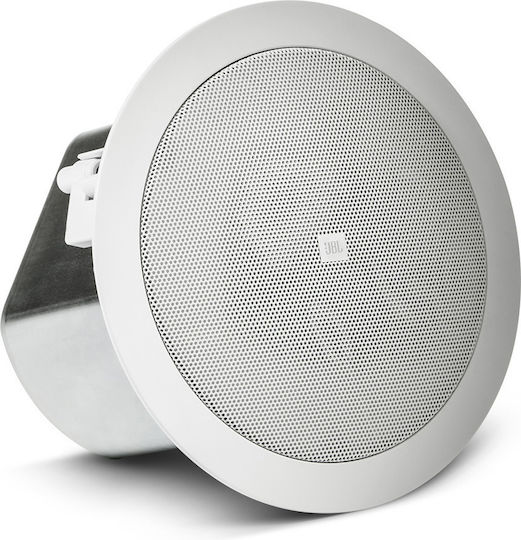

Ceiling speaker with a metal backcan, full range (68 Hz - 17 kHz).
- Driver: 76 mm (3 inch).
- Power: 40W Program Power, 103 dB peak, 8Ω.
- Direct +M/Power Settings: 15W, 7.5W, 3.8W @ 70V and 100V (& 1.9 W @ 70V).
- Easy installation with dog ears.
- Cutout diameter: 17cm.
- Includes: C-ring support backing plate, 2 tile support rails (for 2 ft or 600 mm tile spans), cutout template, paint shield, removable locking multi-pin connector, grille.
- Dimensions: Depth 13.8cm, outer diameter 19.6cm.
- Color: White.
- Weight: 1.6 kg.
Technical Specifications
- Nominal Impendance
- 8 ohm
- Sensitivity
- 84 dB
Main Specifications
- Placing
- Ceiling
- Quantity
- Piece
- Colour
- White
