MAXIMUM ENERGY USE
- The body and front of the insert are resistant to high temperatures thanks to the high-quality steel used in production.
- Efficient combustion process & temperature maintenance for longer duration thanks to the combustion chamber lining with TERMOTEC - a heat-accumulating material that increases the temperature in the combustion chamber.
- Fuel particle combustion thanks to the absorber, which extends the path of exhaust fumes.
- Air supplied only from outside thanks to the built-in fi 125mm air inlet. Air regulator with a single controller that prevents misuse.
- Triple air system of the combustion chamber: primary air - directed to the combustion plate; secondary air supplied through holes in the rear wall. Additionally, a clean air system for the glass (air curtain) has been applied.
- Cleanliness of the combustion chamber thanks to the hexagonal hearth.
SAFETY AT THE HIGHEST LEVEL
- Excellent tightness thanks to solid welds made with a noble gas shield.
- All steel elements are laser cut and bent on CNC machines.
- The front of the insert is equipped with ceramic that is heat-resistant and withstands temperatures up to 660°C.
ECOLOGICAL COMBUSTION
- The unit meets the requirements of Ecodesign standards and the restrictions of the BImSchV 2 specification, which specifies maximum CO emissions.
EASE OF USE
- Grate-free fireplace insert - complete combustion of dust means that the wood burns into fine ash with minimal quantity. The thermal energy produced from the wood is utilized to the maximum.
- Reduced soot deposition through the clean glass system (air curtain).

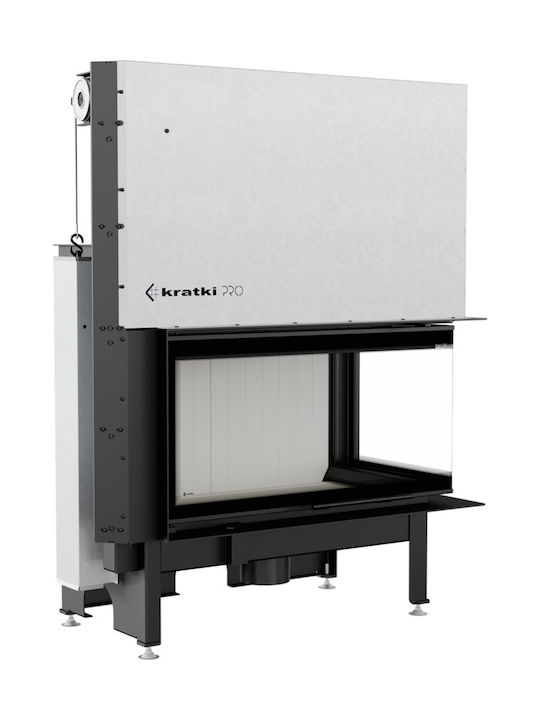

- Double door opening system - LIFT-UP (guillotine) and side opening. The lifted door facilitates wood loading, and the side door mechanism allows for glass cleaning.

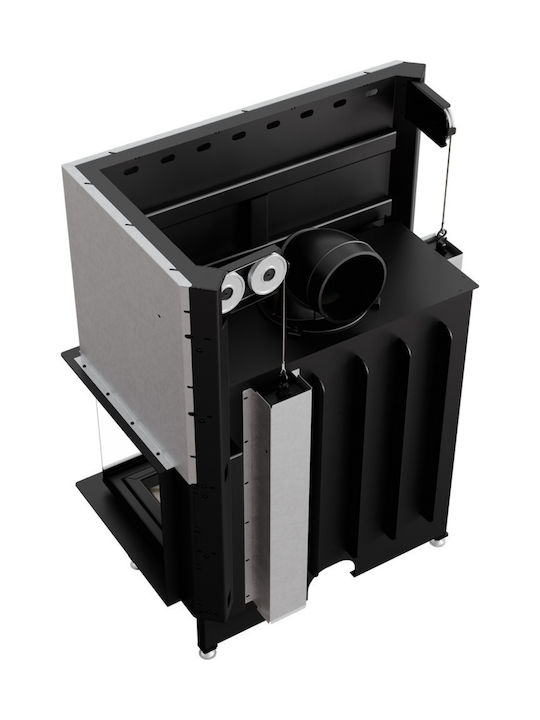

- Can be used in various installation conditions thanks to adjustable legs and a movable smoke outlet with 360° adjustment.
MODERN DESIGN
- Decorative, heat-resistant glass that withstands temperatures up to 660°C. Gives the fireplace a modern and elegant look, visually enlarging the front of the insert.
- A fireplace insert with two panels joined together at angles (without supports).
- Elegant and comfortable sliding handle.
- Product Number
- NADIA/14/P/BS/G/BLACK
Product Details
- Cassette
- No
- Air Ηeater
- No
- Air Duct Connection
- No
- Radiator
- No
- Chimney diameter
- 200 mm
- Material
- Steel
- Fuel
- Wood
- Weight
- 255 kg
Performance

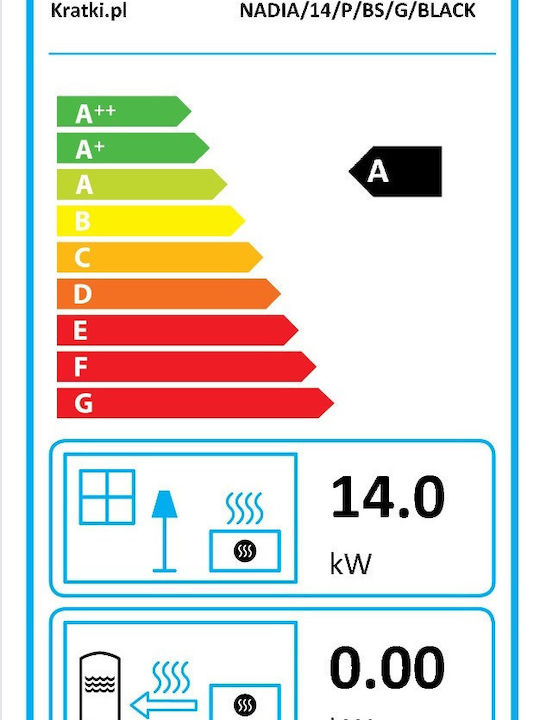

- Energy Class
- A
- Total Power
- 14 kW
- Power in the Air
- 14 kW
- Performance Level
- 80 %
- Water Consumption
- 5.8 kg/h
Attributes
- Windows
- Right Corner
- Container
- -
- Doors
- with Sliding Door
Dimensions
- Height
- 1336 mm
- Width
- 1064 mm
- Length
- 659 mm
