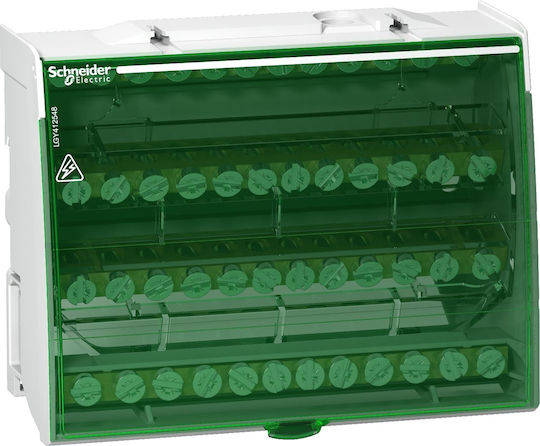

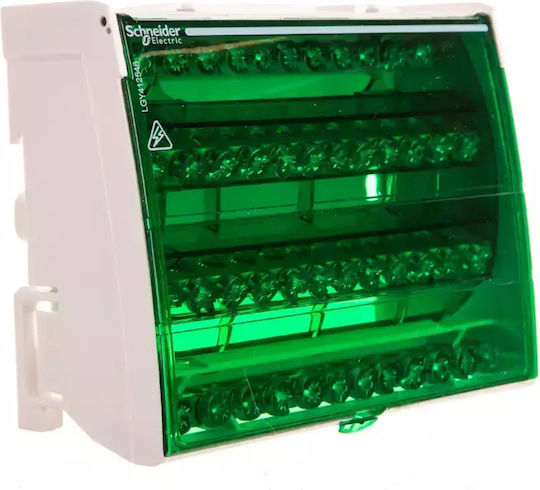

Distribution block from the Linergy series with 48 holes.
- Number of poles: 4
- Nominal operating current (le): 125A
- Nominal impulse withstand voltage [Uimp]: 8kV
- Distribution block outputs: 4x12 holes
- Nominal insulation voltage [Ui]: 500 VAC
- Ambient air temperature for operation: -25…55 °C
- Distances: 9 mm: 14
Connections - terminals:
- Distribution: screw terminal 4 wire(s) 1.5…16 mm² rigid
- Distribution: screw terminal 4 wire(s) 1.5…10 mm² flexible
- Supply: screw terminal 1 wire(s) 10…35 mm² rigid
- Supply: screw terminal 1 wire(s) 4…25 mm² flexible
- Distribution: screw terminal 7 wire(s) 2.5…25 mm² rigid
- Distribution: screw terminal 7 wire(s) 1.5…16 mm² flexible
Tightening torque:
- Distribution: 2 N.m flat screwdriver 7.5 mm
- Distribution: 2 N.m PZ2 screwdriver 7.5 mm
- Supply: 2.5 N.m flat screwdriver 9 mm
- Supply: 2.5 N.m PZ2 screwdriver 9 mm
- Distribution: 2 N.m flat screwdriver 6.5 mm
- Distribution: 2 N.m PZ2 screwdriver 6.5 mm
Dimensions:
- Height: 100mm
- Width: 126mm
- Depth: 50.5mm
- Type
- Power Distribution Block
