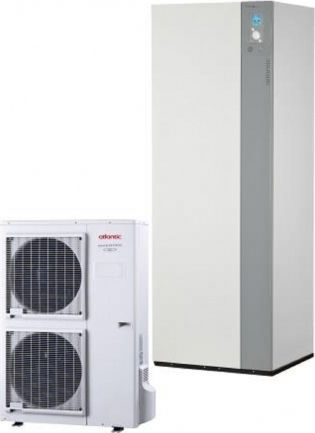

Atlantic Alfea Excellia Duo AI 14 Single Phase Heat Pump 13kW 65°C Split
Heat Pumps

Atlantic Alfea Excellia Duo AI 14 Single Phase Heat Pump 13kW 65°C Split

Split-type air-to-water heat pump with an integrated boiler for domestic hot water production and auxiliary electric resistance.

Capability for heating, cooling, and an integrated 190 lt boiler for...

Split-type air-to-water heat pump with an integrated boiler for domestic hot water production and auxiliary electric resistance.

Capability for heating, cooling, and an integrated 190 lt boiler for domestic hot water production up to 20 lt/min (EN 13.203).

  • COP up to 4.25
  • External DC Inverter unit with injection technology that adjusts its performance to the...
See full description See full description
This product is temporarily unavailable at Skroutz Last updated: about 9 hours ago
Review the product
Product report

Description

Description

Split-type air-to-water heat pump with an integrated boiler for domestic hot water production and auxiliary electric resistance.

Capability for heating, cooling, and an integrated 190 lt boiler for domestic hot water production up to 20 lt/min (EN 13.203).

  • COP up to 4.25
  • External DC Inverter unit with injection technology that adjusts its performance to the installation's needs and weather conditions.
  • Maximum supply water temperature in heating up to 65ºC and heating operation down to –25 ºC.
  • Heat exchanger in the internal hydraulic unit, counter-flow tubular with a very large exchange surface, innovative design immersed in a 16 lt stainless steel buffer tank.
  • New advanced Navistem 400S control system with a Greek menu, more user-friendly for the end-user with easy start function.
  • Remote connection and control capability via internet wi-fi from a mobile phone or tablet using the Cozytouch transceiver (additional charge).
  • Integrated external compensation system with the ability to control the boiler and two independent heating and cooling circuits.
  • Integrated inverter circulator of energy class A, expansion tank, and safety valve.
  • Electric auxiliary resistance in the hot water boiler 1.8 kW and stainless steel expansion tank.
  • Refrigerant: R410A.
  • Single-phase or three-phase power supply.
  • Integrated 6kW back-up electric resistance with the ability to connect up to 3 kW or 9 kW in three-phase pumps with proportional operation.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)
13 kW
Maximum Water Temperature
65 °C
Heating Type
Air to Water

Heating Type

Air to Water
They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.
System Type
Split

System Type

Split
The split system consists of two independent units: the indoor unit (which contains the circulator, heat exchanger, etc.) and the outdoor unit (which houses the compressor, exchanger, fan, etc.), which are connected to each other by copper pipes. Pros: Provides many customization options for individual spaces (e.g. creating different zones according to each space's requirements). There is no fear of the unit freezing, as there is an independent exchanger in the interior of the building. Cons: The above also functions as a disadvantage, as there are limitations on the distance at which the outdoor unit can be placed in relation to the exchanger.
Cooling
No
Domestic Hot Water
with Domestic Water Supply

Domestic Hot Water

with Domestic Water Supply
Includes a container for producing hot water for use.
Domestic Hot Water Tank
190 lt
Power Source
Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.

Energy Class

Energy Class (35ºC)
A++
Energy Class (55ºC)
A+
COP (7ºC - 35ºC)
4.18

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.
Indoor Unit Noise Level
-
Outdoor Unit Noise Level
-

Outdoor Dimensions

Length
900 mm
Height
1290 mm
Length
400 mm

Indoor Dimensions

Length
648 mm
Height
1841 mm
Length
684 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Split-type air-to-water heat pump with an integrated boiler for domestic hot water production and auxiliary electric resistance.

Capability for heating, cooling, and an integrated 190 lt boiler for domestic hot water production up to 20 lt/min (EN 13.203).

  • COP up to 4.25
  • External DC Inverter unit with injection technology that adjusts its performance to the installation's needs and weather conditions.
  • Maximum supply water temperature in heating up to 65ºC and heating operation down to –25 ºC.
  • Heat exchanger in the internal hydraulic unit, counter-flow tubular with a very large exchange surface, innovative design immersed in a 16 lt stainless steel buffer tank.
  • New advanced Navistem 400S control system with a Greek menu, more user-friendly for the end-user with easy start function.
  • Remote connection and control capability via internet wi-fi from a mobile phone or tablet using the Cozytouch transceiver (additional charge).
  • Integrated external compensation system with the ability to control the boiler and two independent heating and cooling circuits.
  • Integrated inverter circulator of energy class A, expansion tank, and safety valve.
  • Electric auxiliary resistance in the hot water boiler 1.8 kW and stainless steel expansion tank.
  • Refrigerant: R410A.
  • Single-phase or three-phase power supply.
  • Integrated 6kW back-up electric resistance with the ability to connect up to 3 kW or 9 kW in three-phase pumps with proportional operation.

Manufacturer

Manufacturer Details

Warnings & Safety Information

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)
13 kW
Maximum Water Temperature
65 °C
Heating Type
Air to Water

Heating Type

Air to Water
They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.
System Type
Split

System Type

Split
The split system consists of two independent units: the indoor unit (which contains the circulator, heat exchanger, etc.) and the outdoor unit (which houses the compressor, exchanger, fan, etc.), which are connected to each other by copper pipes. Pros: Provides many customization options for individual spaces (e.g. creating different zones according to each space's requirements). There is no fear of the unit freezing, as there is an independent exchanger in the interior of the building. Cons: The above also functions as a disadvantage, as there are limitations on the distance at which the outdoor unit can be placed in relation to the exchanger.
Cooling
No
Domestic Hot Water
with Domestic Water Supply

Domestic Hot Water

with Domestic Water Supply
Includes a container for producing hot water for use.
Domestic Hot Water Tank
190 lt
Power Source
Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.

Energy Class

Energy Class (35ºC)
A++
Energy Class (55ºC)
A+
COP (7ºC - 35ºC)
4.18

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.
Indoor Unit Noise Level
-
Outdoor Unit Noise Level
-

Outdoor Dimensions

Length
900 mm
Height
1290 mm
Length
400 mm

Indoor Dimensions

Length
648 mm
Height
1841 mm
Length
684 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
