Martin Logan Classic ESL 9 Pair of Hi-Fi Speakers Floor 400W W26.4xD64.6xH152cm. Black
Passive Hi-Fi speakers

Martin Logan Classic ESL 9 Pair of Hi-Fi Speakers Floor 400W W26.4xD64.6xH152cm. Black

Technical Specifications

  • Frequency Range: 34–23,000 Hz 3dB
  • Recommended Amplifier Power: 20—400 watts per channel
  • Horizontal Dispersion: 30°
  • Vertical Dispersion: 44" (112cm) line source
  • Sensitivity:...

Technical Specifications

  • Frequency Range: 34–23,000 Hz 3dB
  • Recommended Amplifier Power: 20—400 watts per channel
  • Horizontal Dispersion: 30°
  • Vertical Dispersion: 44" (112cm) line source
  • Sensitivity: 90 dB/2.83 volts/meter
  • Impedance: 4 Ohms, 0.8 at 20kHz
  • Compatibility with 4, 6, or 8 Ohm amplifiers
  • Cross-over Frequency: 380Hz
  • High-Frequency Transducer: XStat...
See full description See full description
10199 00 €
10,20€ cashback in Coins 10,20€ cashback in Coins
Delivery up to 26 days
27,00 €

Reduced Shipping

For purchases from Skroutz a discount is applied for this particular product.

Learn more
Delivery to your floor available
Do you want it with Free shipping?
From SoundGallery
Αθήνα, Αττικής
1 piece
See Speakers on the page of SoundGallery
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come and pick it up (completely free of charge if you have Skroutz Plus) and refund your money.

Review the product
Product report

Description

Description

Technical Specifications

  • Frequency Range: 34–23,000 Hz ±3dB
  • Recommended Amplifier Power: 20—400 watts per channel
  • Horizontal Dispersion: 30°
  • Vertical Dispersion: 44" (112cm) line source
  • Sensitivity: 90 dB/2.83 volts/meter
  • Impedance: 4 Ohms, 0.8 at 20kHz
  • Compatibility with 4, 6, or 8 Ohm amplifiers
  • Cross-over Frequency: 380Hz
  • High-Frequency Transducer: XStat CLS electrostatic transducer
  • Panel Dimensions: 44" x 9.2" (112 x 23cm)
  • Radiating Area: 405 in² (2,576 cm²)
  • Low-Frequency Transducer: Two 8” (20.3 cm) cast iron, high excursion, rigid aluminum cones with extended throw assembly, non-resonance asymmetrical capsule
  • Components: Custom-wound audio transformer, air core coils, low DCR steel coils, polyester capacitors

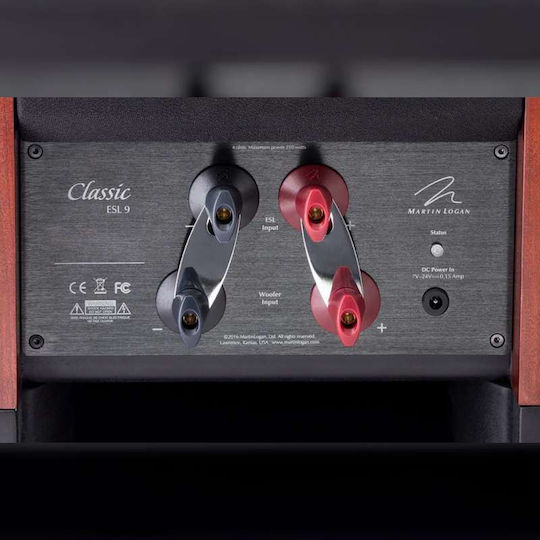

  • Signal Connections: Custom 5-way industrial tool-free binding posts
  • Power Consumption: Maximum: 2W per channel, Standby:
  • Weight: 78 lbs. (35.4 kg)
  • Dimensions: 59.8" x 10.4" x 25.4" (152cm x 26.4cm x 64.6cm)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Power
400 W

Power

Power is expressed in watts and describes the actual intensity that can be heard from the speaker. Your number indicates the maximum power that the speaker can handle for an extended period of time.
Freequency Range
34 - 23000 Hz

Freequency Range

The frequency response indicates the range of tones that a speaker can produce. The lower number indicates how low the speaker can play and how deep its bass goes. The higher number indicates the upper limit of the speaker's tonal range (high frequencies).
Nominal Impendance
4 ohm

Nominal Impendance

The Ohm resistance describes the amount of electrical resistance that an amplifier reads, that is, the amount of current that can "pass" through the speaker.
Sensitivity
90 dB

Sensitivity

The sensitivity of a speaker describes how effectively power (watt) is converted into sound pressure level (dB). Therefore, the higher the value, the louder the speakers will play with a given power.
Placing
Floor
Bass Driver
8 "
Dolby Atmos
No
Quantity
Pair
Colour
Black
Height
152 cm
Width
26.4 cm
Length
64.6 cm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
