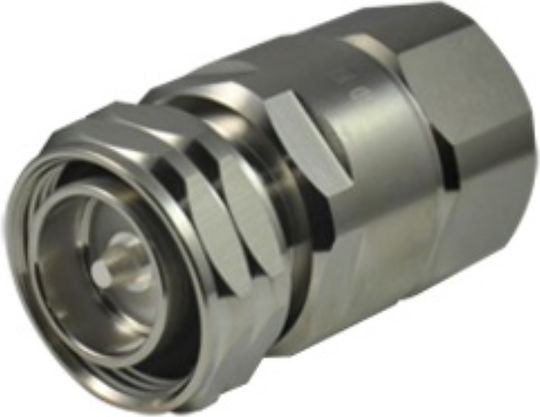

Plug DIN male Silver (01.119.0023)
Plugs

Plug DIN male Silver (01.119.0023)

MATERIALS OF CONSTRUCTION AND COATINGS

  • Inner conductor: Silver-plated brass
  • Inner conductor socket: Silver-plated and tin-plated brass
  • Dielectric: PTFE/TPX (TEFLON)
  • Main body: Tri-metallic brass...

MATERIALS OF CONSTRUCTION AND COATINGS

  • Inner conductor: Silver-plated brass
  • Inner conductor socket: Silver-plated and tin-plated brass
  • Dielectric: PTFE/TPX (TEFLON)
  • Main body: Tri-metallic brass coating (with copper, tin, zinc)
  • Flange: Silicone rubber

ELECTRICAL CHARACTERISTICS

  • Impedance: 50 Ohm
  • Operating range: DC~18GHz
  • Insulation resistance: >10000MΩ
  • ...
See full description See full description
8 37 €
9 Coins 9 Coins
Delivery by Wed, 08 Jul
2,50 € to a Skroutz Point
or   3,50 €   shipping cost
From Plus26 5.0 (12)
5.0 (12 reviews)
Αθήνα, Αττικής
10 pieces
See Electronics on the page of Plus26
What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

MATERIALS OF CONSTRUCTION AND COATINGS

  • Inner conductor: Silver-plated brass
  • Inner conductor socket: Silver-plated and tin-plated brass
  • Dielectric: PTFE/TPX (TEFLON)
  • Main body: Tri-metallic brass coating (with copper, tin, zinc)
  • Flange: Silicone rubber

ELECTRICAL CHARACTERISTICS

  • Impedance: 50 Ohm
  • Operating range: DC~18GHz
  • Insulation resistance: >10000MΩ
  • Dielectric strength: 2500V rms
  • Operating voltage: 1400V rms

ENVIRONMENTAL CONDITIONS AND MECHANICAL CHARACTERISTICS

  • Mechanical durability: >500 connect-disconnect cycles
  • Method of measuring mechanical strengths: MIL-STD-202, Method 213, Test Condition D
  • Method of measuring shock mechanical damping: MIL-STD-202, Meth. 204, Condition A
  • Operating temperature: -65°C~+85°C
  • Protection rating: IP68

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Connection
DIN
Connector Gender
male
Colour
Silver
Packaging
1 pcs

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

MATERIALS OF CONSTRUCTION AND COATINGS

  • Inner conductor: Silver-plated brass
  • Inner conductor socket: Silver-plated and tin-plated brass
  • Dielectric: PTFE/TPX (TEFLON)
  • Main body: Tri-metallic brass coating (with copper, tin, zinc)
  • Flange: Silicone rubber

ELECTRICAL CHARACTERISTICS

  • Impedance: 50 Ohm
  • Operating range: DC~18GHz
  • Insulation resistance: >10000MΩ
  • Dielectric strength: 2500V rms
  • Operating voltage: 1400V rms

ENVIRONMENTAL CONDITIONS AND MECHANICAL CHARACTERISTICS

  • Mechanical durability: >500 connect-disconnect cycles
  • Method of measuring mechanical strengths: MIL-STD-202, Method 213, Test Condition D
  • Method of measuring shock mechanical damping: MIL-STD-202, Meth. 204, Condition A
  • Operating temperature: -65°C~+85°C
  • Protection rating: IP68

Manufacturer

Manufacturer Details

Warnings & Safety Information
Connection
DIN
Connector Gender
male
Colour
Silver
Packaging
1 pcs
