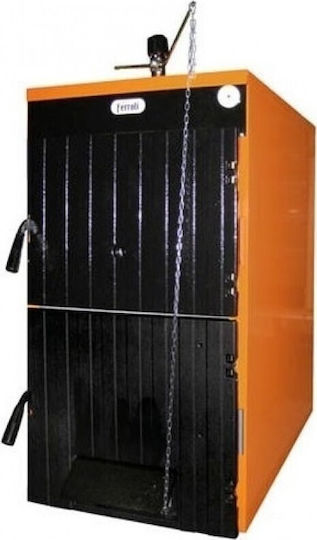

Technical Specifications

• Thermal Output: 27 KW on wood, 30 KW on pellet, 32.5 KW on coal
• Fuel: Wood, coal, pellet
• Burner Compatibility: MikroP7
• Water Content: 30 lt
• Combustion Chamber Capacity: 68 dm³
• Width: 533mm
• Chimney Diameter: 150mm
• Door Dimensions: 384mm
• Operating Pressure: 4 Bar
• Weight: 241Kg
• High-efficiency solid fuel cast iron boiler GG20 (EN-GJL200)
• Use of Pellet with the installation of the burner door and Pellet burner Mikro P
• Efficiency class, according to 3EN303-5
• Efficiency up to 81% of wood fuel thanks to the wide heat exchanger surface in the cast iron sections
• Spacious combustion chamber up to 128dm³ allowing the burning of large wood pieces
• Adjustable smoke disperser at the chimney outlet
• Stainless steel ashtray with easy front access
• Regulating thermostat in standard equipment
• Provision of safety device against overheating

IMMERSED MECHANICAL THERMOSTAT

The thermostat is suitable for operation with wood and coke. The central heating water temperature is maintained at the desired value by automatically adjusting the combustion air intake through a simple yet effective system. The thermostat will reduce the air intake as the temperature rises and will activate the air diaphragm as the temperature drops to feed the flame. This system optimizes combustion quality by reducing soot and fuel consumption.

OVERHEATING PROTECTION COIL AND THERMOSTATIC VALVE

The installation of this device is optional according to the EN 303-5 directive. It consists of a thermostatic valve and a coil. The coil is a heat exchanger with dimensions suitable for the size of the model, so it is immersed in the boiler's heating water. The thermostatic valve detects the boiler temperature through a dual-sensor detector. If the boiler temperature reaches 95°C, the valve releases the excess heat, which is exchanged in the coil.
