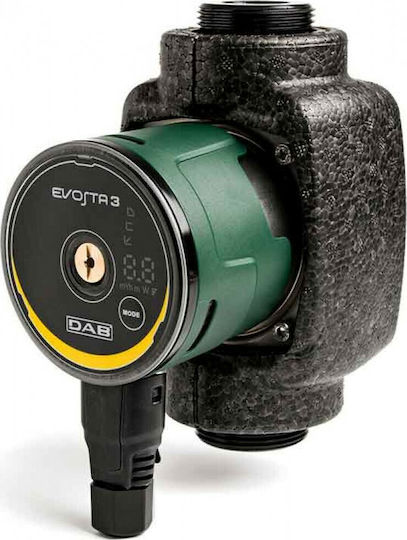

Circulator DAB EVOSTA 3 40/180X R 1 1/4''
The new series of circulators EVOSTA 3 combines the power and durability of conventional circulators with the advantages and capabilities of electronics. Thanks to the modern permanent magnet motor and inverter operation, the EVOSTA 3 family ranks among the best products in their category in terms of performance and reliability.
TECHNICAL CHARACTERISTICS:
- Operating range: 0.4-4.2 m3/h
- Head up to 8 m
- Fluid temperature range: from -10°C to +110°C
- Max operating pressure: 10 bar (1000 kPa)
- Protection class: IPX5
- Insulation class: F
- Minimum suction head: 10 m.c.a
- Motor voltage: single-phase 1 x 230 V ~ 50/60 Hz
- Type of pumped fluid: clean, without solids and mineral oils, non-viscous, chemically neutral, with properties similar to water (glycol max 30%)
Product Details
- Electronic
- No
- Application
- Heating, Air Conditioning
- Maximum Pressure Head (m)
- 4 m
Dimensions
- Connection Diameter
- 30 mm
- Length
- 180 mm
Important information
Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
