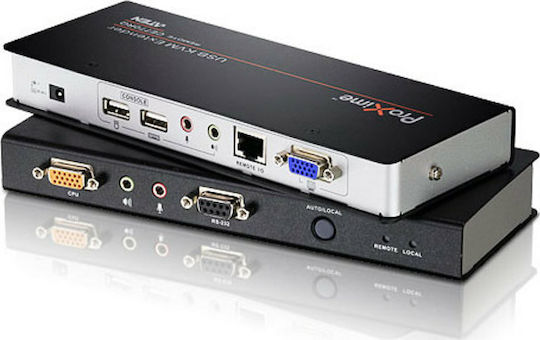

The ATENCE770CE770 USB KVM Extender is a USB-based KVM extension with Deskew functionality. Automatic signal compression and support for RS-232 serial transmission allow access to the computer system from a remote USB console.
Automatic RGB signal delay adjustment facilitates the separation of devices over long distances. The CE770 line synchronization feature corrects color phase and synchronization errors that occur during transmission over longer distances. Additionally, manual configuration options for RGB signal settings are provided.

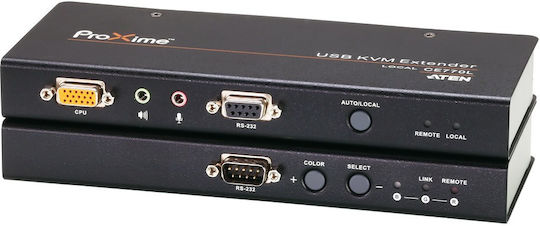

- Separator Local module: CE770L
- Remote module: CE770RQ
- Hot Swap: No

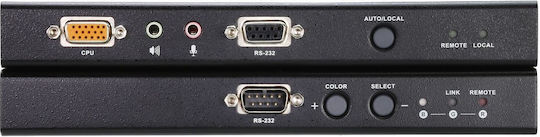

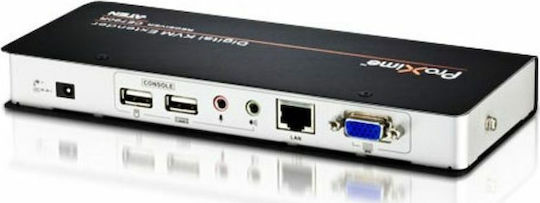

- Console ports: 1 x RS-232 Serial Port (COM), 2x Audio 3.5mm minijack Female, 2x USB Type A Female, 1 x RJ-45, 1x Video D-Sub 15pin Female
- PC ports: 1x SPHD-17pin Female, 2x Audio 3.5mm minijack Female
- Resolution: 1920 x 1200 (WUXGA)
- Includes: CE770RQ features (remote unit), Custom KVM cable (VGA, USB, Audio; 1.8m/6ft), Power supply x2, Mounting kit, User manual
- Dimensions: 20.20 x 8.64 x 2.50 cm
- Weight: 0.49 kg
- Color: Black
- Connectivity
- Ethernet, Audio, RS-232, SPHD, USB, VGA
- Features
- Extender
