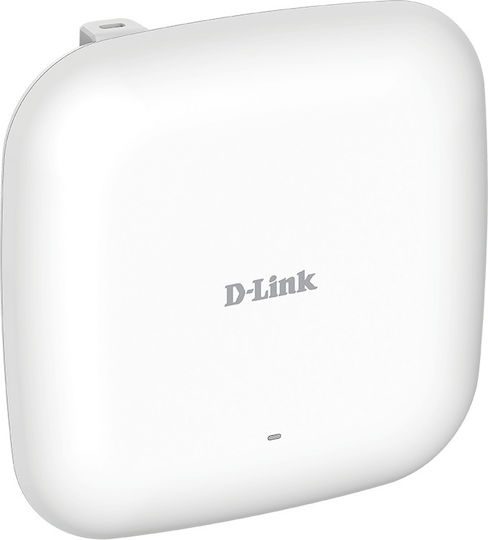

D-Link AX1800
- Maximum data transfer rate: 1800 Mbit/s
- Maximum data transfer rate (2.4 GHz): 575 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Security algorithm support: 64-bit WEP, 128-bit WEP, SSID, SSL/TLS, WPA, WPA2, WPA3
- AC input voltage: 12 V
- Input operating current: 2.5 A
- Power consumption (max): 19.44 W
- Product color: White
- LED communication indicators: Power, Status
- ISV certifications: FCC
- Antenna type: Internal
- Antenna gain level (max): 4.3 dBi
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Frequency band and operating channels: 2.4/5GHz
- Network standard: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u
- MIMO: YES
- MIMO type: Multi User MIMO

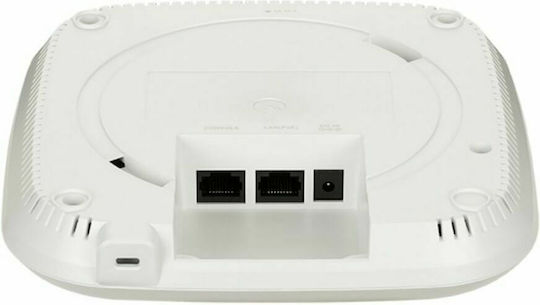

- Number of ethernet LAN (RJ-45) ports: 2
- AC input voltage: 12V
- Power consumption (max): 19.44W
- Width: 170mm
- Depth: 170mm
- Height: 28mm
- Weight: 477.4g
- Operating humidity range: 10 - 90%
- Operating temperature range: 0 - 40°C
- Storage temperature limits: -20 - 65°C
- Non-operating humidity: 5 - 95%
- Sustainability certificates: CE
- Harmonized System (HS) code: 85176990
Technical Specifications
- Frequency
- Dual Band (2.4 & 5GHz)
- Maximum WLAN Speed
- 1200 Mbps
- Wi-Fi Generation
- Wi‑Fi 6
- IEEE Networking Standards
- 802.11a, 802.11 b/g/n, 802.11ac, 802.11ax
- LAN speed
- 1000 Mbps
- Wi-Fi Mesh Network
- No
- Ethernet Backhaul
- No
- Antenna Power (max)
- 4.3 dBi
- PoE Support
- PoE
General Characteristics
- Placement
- Indoor
- Ethernet Ports
- 1
- Packaging
- Single Kit
Installation Type
- Ceiling
- No
- Wall
- No
- Board games
- No
