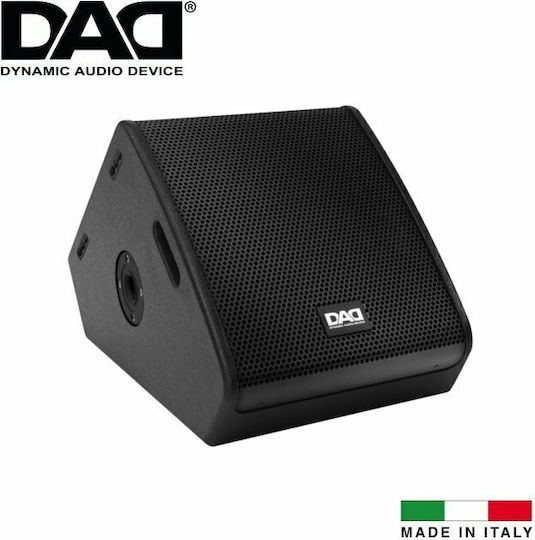

DAD TOURING12MP Passive Stage Monitor 350W with Woofer 12" 43x55.8x41cm.
PA Speakers

DAD TOURING12MP Passive Stage Monitor 350W with Woofer 12" 43x55.8x41cm.

Stage monitor speaker, coaxial design, 2-way 350W AES, 130dB SPL

Components:

  • 12'' Nd woofer with 3'' voice coil
  • HF Nd compression driver with 1.4'' throat, titanium diaphragm, and 3'' voice coil
  • ...

Stage monitor speaker, coaxial design, 2-way 350W AES, 130dB SPL

Components:

  • 12'' Nd woofer with 3'' voice coil
  • HF Nd compression driver with 1.4'' throat, titanium diaphragm, and 3'' voice coil
  • 60°x40° (HxV) constant-directivity elliptical waveguide
  • Impedance: 8Ohm
  • Recommended amplifier: up to 700W RMS/8Ohm
  • Sensitivity: 99dB @1W/1m
  • Frequency response:...
See full description See full description
993 00 €
Preparation for shipment within 6 days
Free  shipping cost
View at store
From Live-Market
Ελευσίνα, Αττικής
Shop homepage
Review the product
Product report

Description

Description

Stage monitor speaker, coaxial design, 2-way 350W AES, 130dB SPL

Components:

  • 12'' Nd woofer with 3'' voice coil
  • HF Nd compression driver with 1.4'' throat, titanium diaphragm, and 3'' voice coil
  • 60°x40° (HxV) constant-directivity elliptical waveguide
  • Impedance: 8Ohm
  • Recommended amplifier: up to 700W RMS/8Ohm
  • Sensitivity: 99dB @1W/1m
  • Frequency response: 80-18000Hz (±3dB)
  • Crossover frequency: 1400Hz
  • External recommended HPF range: 80Hz to 150Hz
  • Passive filter with HF driver protection

Connections:

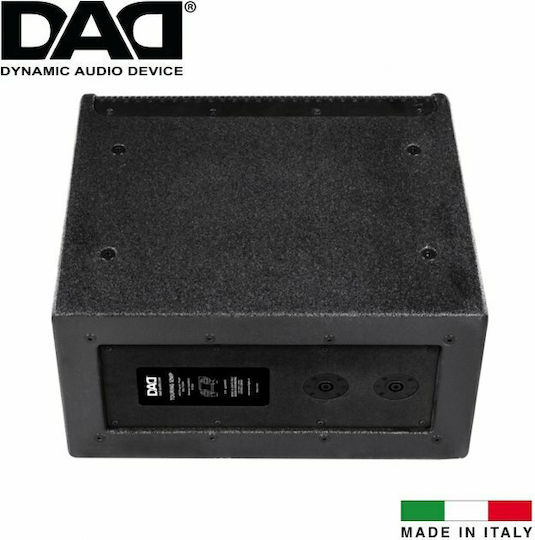

  • Neutrik NL-4 Speakon in/out

Cabinet construction:

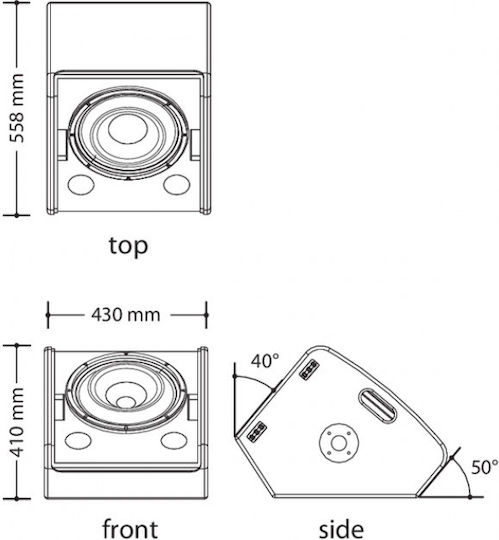

  • Trapezoidal profile, 50° enclosure angle
  • 18mm multi-layer birch plywood
  • Quick suspension system ''fly-track'' or M8 screw in 4 support points
  • 35mm adapter for stand mounting

Applications:

  • Excellent clarity in voice and music monitoring for live and recorded performances
  • For sound installations in environments requiring dynamic and high sound pressure
  • Installed in theaters and conferences thanks to excellent sound performance
  • Mid-high unit in multi-amplifier sound systems in combination with DAD subwoofer

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Functionality
Passive

Functionality

Passive
An amplifier is needed for it to work.
Type
Stage Monitor
Power (RMS)
350 W
Bass Driver
12 "
Weight
16.5 kg
Quantity
Piece
Set
No
Colour
Black
Line Array
-

Line Array

A Line Array is defined as a set of radiating elements arranged in a vertical array, operating with the same amplitude and in phase.
Battery Speaker
-
Height
41 cm
Length
43 cm
Length
55.8 cm

Connectivity

Connection Technologies
Coaxial

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

Stage monitor speaker, coaxial design, 2-way 350W AES, 130dB SPL

Components:

  • 12'' Nd woofer with 3'' voice coil
  • HF Nd compression driver with 1.4'' throat, titanium diaphragm, and 3'' voice coil
  • 60°x40° (HxV) constant-directivity elliptical waveguide
  • Impedance: 8Ohm
  • Recommended amplifier: up to 700W RMS/8Ohm
  • Sensitivity: 99dB @1W/1m
  • Frequency response: 80-18000Hz (±3dB)
  • Crossover frequency: 1400Hz
  • External recommended HPF range: 80Hz to 150Hz
  • Passive filter with HF driver protection

Connections:

  • Neutrik NL-4 Speakon in/out

Cabinet construction:

  • Trapezoidal profile, 50° enclosure angle
  • 18mm multi-layer birch plywood
  • Quick suspension system ''fly-track'' or M8 screw in 4 support points
  • 35mm adapter for stand mounting

Applications:

  • Excellent clarity in voice and music monitoring for live and recorded performances
  • For sound installations in environments requiring dynamic and high sound pressure
  • Installed in theaters and conferences thanks to excellent sound performance
  • Mid-high unit in multi-amplifier sound systems in combination with DAD subwoofer

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Functionality
Passive

Functionality

Passive
An amplifier is needed for it to work.
Type
Stage Monitor
Power (RMS)
350 W
Bass Driver
12 "
Weight
16.5 kg
Quantity
Piece
Set
No
Colour
Black
Line Array
-

Line Array

A Line Array is defined as a set of radiating elements arranged in a vertical array, operating with the same amplitude and in phase.
Battery Speaker
-
Height
41 cm
Length
43 cm
Length
55.8 cm

Connectivity

Connection Technologies
Coaxial

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
