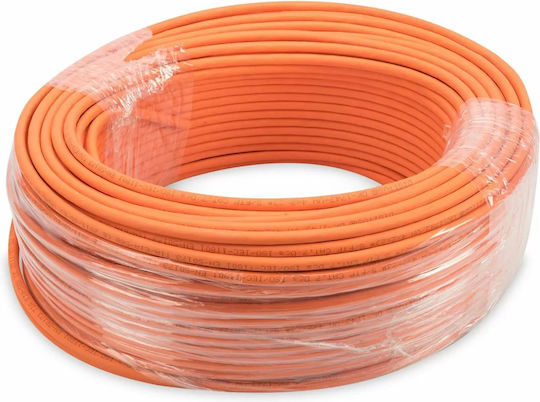

The best performance and connection quality for your network.

• 10GBit Ethernet
• Transmission frequency 1200 MHz
• Permanent link certification
• PoE Power over Ethernet support
• CPR Category Dca-s1a d1 a1

Physical properties:

• Cable: AWG 23/1, bare copper wire
• Insulation: SFS-PE (foamed polyethylene jacket)
• Number of total insulated wires: 8, twisted into 4 pairs
• Color code: blue-white, orange-white, green-white, brown-white
• Shielding of a pair: polyester film with aluminum lining, 100% coverage
• Common shielding: 50% braid coverage
• Outer sheath: Halogen-free (FRNC-C/LSZH-3)
• Outer sheath thickness: 0.7 mm nominal
• Color: orange (RAL 2000)

Mechanical properties:

• Tensile load: 150 N max
• Dynamic bending radius: 8x AD mm min
• Static bending radius: 4x AD mm min
• Temperature range during transport and storage: -20 °C to +75 °C
• Operating temperature range: -20 °C to +60 °C
• Temperature range during installation: 0 °C to +50 °C
• Outer band diameter: Nominal 7.3 mm

Electrical properties:

• Average resistance: 100±5 ohms at 1 MHz - 600 MHz
• Capacity: 40 pF/m nominal @ 1 KHz
• Insulation resistance: 5 giga ohms x km min
• DC resistance: 72 ohms/km maximum
• Loop resistance: 147 ohms/km max
• Operating voltage: 72V DC max
• Insertion loss: Class 1 (CA-Type 1b)
• Phase delay: 450 nS/100 m max
• Signal transmission delay: 15 nS/100 m max
