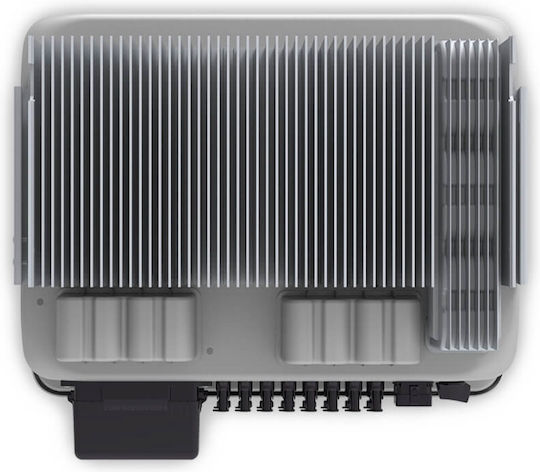

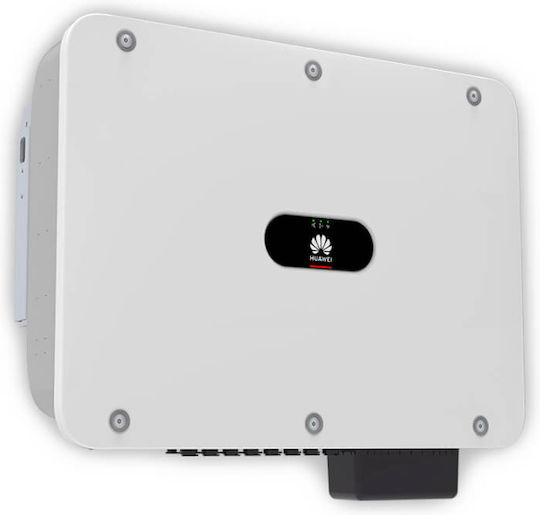

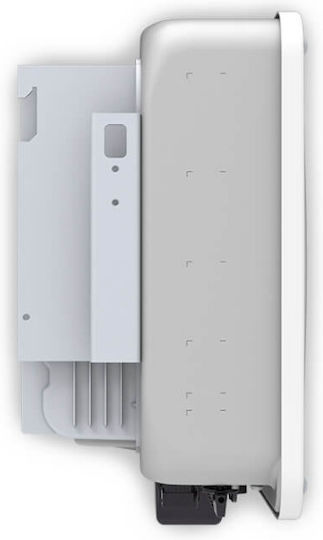

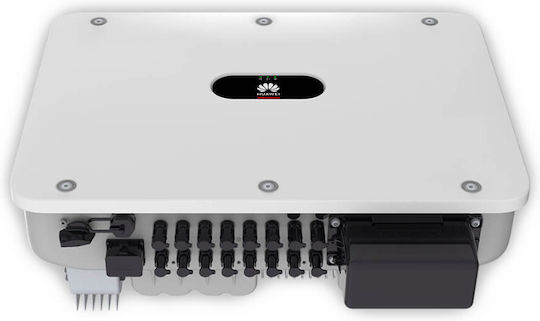

Three-phase inverter 36000W from Huawei. Converts direct current (DC) 600V to alternating current (AC) three-phase and allows the supply of devices and electrical networks from renewable energy sources such as photovoltaic systems and wind turbines.

• Max. efficiency: 98.7 %
• European weighted efficiency: 98.4 %
• Max. input voltage: 1100 V
• Max. Current per MPPT: 26 A
• Max. Short Circuit Current per MPPT: 40 A
• Start voltage: 200 V
• MPPT operating voltage range: 200 V – 1000 V
• Rated Input Voltage: 600 V
• Number of Inputs: 8
• Number of MPP trackers: 4
• Grid Connection: Three-phase
• Rated AC Active Power: 36000 W
• Max. AC apparent power: 40000 VA
• Rated output voltage: 230 Vac / 400 Vac / 480 Vac, 3W/N+PE
• Rated AC grid frequency: 50 Hz / 60 Hz
• Rated Output Current: 43.3 A
• Max. output current: 47.9 A
• Adjustable Power Factor Range: 0.8 leading … 0.8 lagging
• Max. total harmonic distortion: ≤ 3 %
• Input-side disconnection device: Yes
• Anti-Islanding protection: Yes
• AC over-current protection: Yes
• DC reverse-polarity protection: Yes
• PV-array String Fault Monitoring: Yes
• DC Surge Arrester: Yes
• AC Surge Arrester: Yes
• DC Insulation Resistance Detection: Yes
• Residual current monitoring: Yes
• Arc fault protection: Yes
• Ripple receiver control: Yes
• Integrated PID recovery: Yes
• Display: LED indicators; integrated WLAN + FusionSolar APP
• Smart Dongle: WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional)
• 4G / 3G / 2G via Smart Dongle-4G: (Optional)
• Monitoring BUS (MBUS): Yes (Isolation Transformer required)
• Weight (with mounting plate): 43 kg
• Dimensions (W x H x D): 640 x 530 x 270 mm
• Degree of protection: IP66
• Operating Temperature Range: -25 ~ + 60 °C
• Cooling Method: Natural Convection
• Max. Operating Altitude: 4,000 m
• Relative Humidity: 0% RH ~ 100% RH
• DC Connector: Staubli MC4
• AC Connector: Waterproof Connector + OT/DT Terminal
• Topology: Transformerless
• Nighttime power consumption: < 5.5 W
• DC MBUS compatible optimizer: SUN2000-450W-P
• Safety: EN 62109-1/-2, IEC 62109-1/-2, EN 50530, IEC 62116, IEC 60068, IEC 61683
• Grid connection standards: IEC 61727, VDE-AR-N4105, VDE 0126-1-1, BDEW, G59/3, UTE C 15-712-1, CEI 0-16, CEI 0-21, RD 661, RD 1699, P.O.
12.3, RD 413, EN-50438-Turkey, EN-50438-Ireland, C10/11, MEA, Resolution No.7, NRS 097-2-1, AS/NZS 4777.2, DEWA
