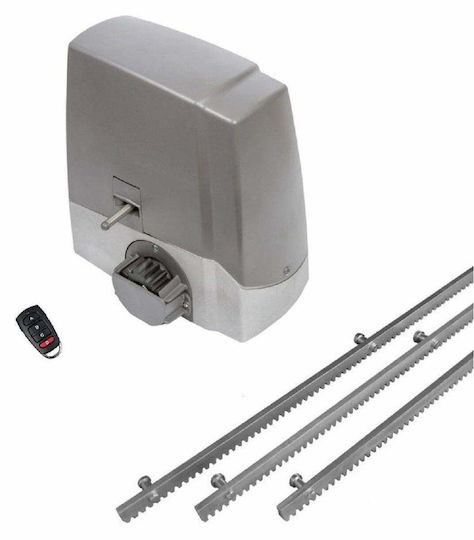

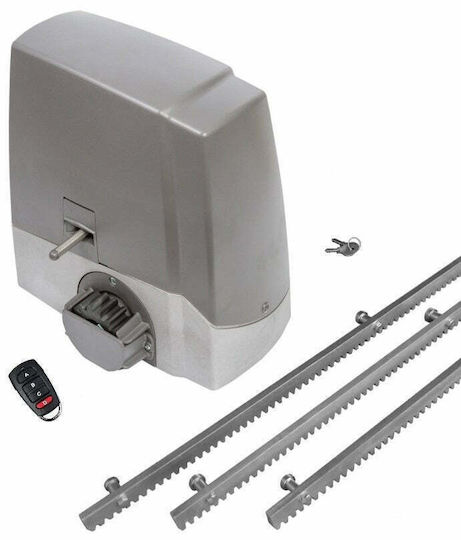

Mechanism set for a sliding garage door with a maximum leaf weight of 800 Kg, featuring a PROTECO MEKO-8 motor and built-in Autotech S5060T control panel. It includes a 3m metal rack module 4 and 1 ProfelmNet PSD-36T remote control. The package includes a mounting bracket, terminal switch activation strips, disengagement keys, installation instructions, etc.
- Maximum leaf weight: 800kg
- Non-reversible, permanently lubricated mechanism
- Up to 25 openings/closings per hour
- Up to 40 openings/closings per day
- Single-phase motor (230 VAC)
- Dimensions of the mechanism: 310x195x310 mm (WxDxH)
- Leaf movement speed: 10.5 m/min
- Motor power consumption: 300 W
- Motor thermal protection: 150 °C
- Disengagement door with key (manual operation)
- Protection rating: IP44
- Gear type: Z16/module 4
- Metal rack module 4
- Country of origin: Italy
Specifications
- Motor type
- Sliding
- Maximum Weight
- 800 kg
- Built-in Control Panel
- Yes
Set Contents
- Motor
- 1 pcs
- Control Panel
- 1 pcs
- Remote Control
- 1 pcs
- Gear Rack
- 3 m
