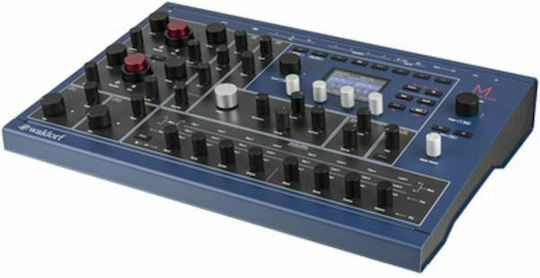

With the M, Waldorf returns to its roots by bringing back the classic Microwave and the “modern” generation of the Microwave II as a classic new-generation hybrid synthesizer featuring an analog lowpass 24 dB/Oct VCF — SSI 2144 Improved Ladder Type — with resonance, true stereo analog VCA with a shift option, and much more for exploration on a user-friendly interface.

• Quadruple multitimbral (4 parts can be assigned to 4 individual stereo outputs)
• 2 Wavetable oscillators with separate sound generation and two different models (Waldorf Microwave I and modern Waldorf Microwave II)
• 96 factory wavetables + 32 memory slots
• Analog low-pass filter with 24 dB/oct (extended SSI 2144 filter)
• Analog stereo VCA for each sound
• 4 Envelope generators
• Two LFOs with different waveforms
• Arpeggiator with 16 preset patterns and chord mode
• MIDI clock synchronization capability
• 2048 sounds
• Compatible with Waldorf Microwave I Sysex data (for sound transfer/sound transfer)
• SD card slot for loading and storing sounds, sound banks, and wavetables

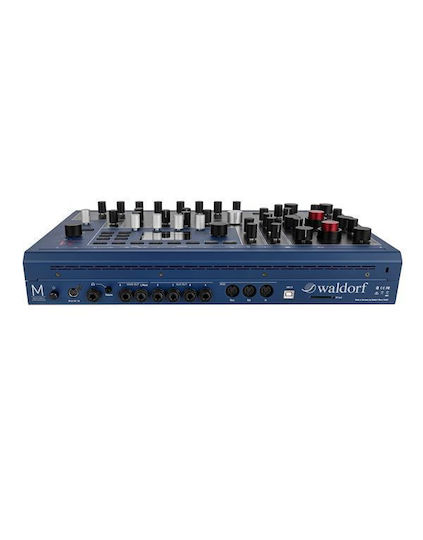

• MIDI: USB 2.0 and DIN (5-pin DIN sockets for In/Out/Thru)
• 2 outputs
• 2 Line outputs: 6.3 mm unbalanced jack (L/R stereo)
• 4 Stereo outputs: 6.3 mm TRS jack (aux outputs A-D)
• Dimensions: 440 x 305 x 85 mm
• Weight: 5.7 kg
