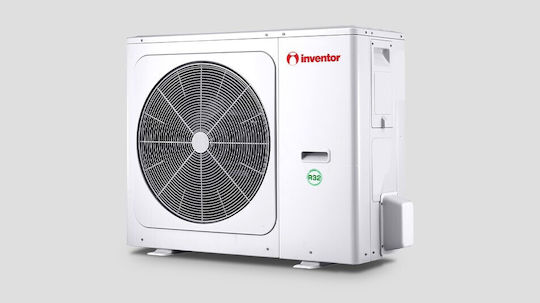

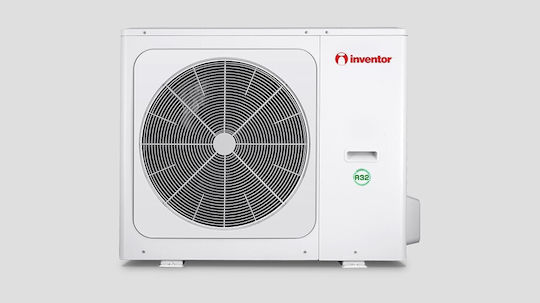

Inventor ATS14S/HU160S3 Single Phase Heat Pump 14.5kW 65°C Split
Heat Pumps

Inventor ATS14S/HU160S3 Single Phase Heat Pump 14.5kW 65°C Split

Matrix Split Type Heat Pumps for high performance and energy savings.

Energy class A+++ for energy and cost savings with excellent performance.

  • Excellent operation even in extreme outdoor...

Matrix Split Type Heat Pumps for high performance and energy savings.

Energy class A+++ for energy and cost savings with excellent performance.

  • Excellent operation even in extreme outdoor temperatures.
  • Supply water up to 65°C for the ability to connect to radiators.
  • Central Control of the device with a touch controller and Greek Menu.
  • Device adjustment via...
See full description See full description
This product is temporarily unavailable at Skroutz Last updated: 4 days ago
Review the product
Product report

Description

Description

Matrix Split Type Heat Pumps for high performance and energy savings.

Energy class A+++ for energy and cost savings with excellent performance.

  • Excellent operation even in extreme outdoor temperatures.
  • Supply water up to 65°C for the ability to connect to radiators.
  • Central Control of the device with a touch controller and Greek Menu.
  • Device adjustment via Wi-Fi.
  • Equipped with anti-freeze resistance at the base of the outdoor unit.
  • Two levels of silent operation for reduced noise.

Matrix heat pumps are ideal for heating, cooling, and Domestic Hot Water (DHW) production. The A+++ Energy Class offers high performance and low consumption.

The special heating zone extends the pump's lifespan, while the touch controller provides comprehensive control.

  • Operation even in extreme temperatures (up to -25°C).
  • Supply capability up to 65°C for connection with existing radiators.
  • Wi-Fi Standard for remote control via app.
  • Two levels of silent operation.
  • Construction with a heating zone in the compressor and the outdoor unit.
  • Disinfection Function 65~70°C for quality domestic hot water.

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Technical Specifications

Rated Thermal Power (7ºC - 35ºC)
14.5 kW

Rated Thermal Power (7ºC - 35ºC): 14.5


Recommended for a residence up to 130m².
Maximum Water Temperature
65 °C
Heating Type
Air to Water

Heating Type

Air to Water
They use air as a source of heat, and water as a means of transportation, to channel cooling or heating into the space.
System Type
Split

System Type

Split
The split system consists of two independent units: the indoor unit (which contains the circulator, heat exchanger, etc.) and the outdoor unit (which houses the compressor, exchanger, fan, etc.), which are connected to each other by copper pipes. Pros: Provides many customization options for individual spaces (e.g. creating different zones according to each space's requirements). There is no fear of the unit freezing, as there is an independent exchanger in the interior of the building. Cons: The above also functions as a disadvantage, as there are limitations on the distance at which the outdoor unit can be placed in relation to the exchanger.
Cooling
Yes
Domestic Hot Water
Optional Domestic Water Supply
Power Source
Single Phase

Power Source

Single Phase

The voltage of the single-phase current is 220-230V (the same as the voltage required by household appliances) and is sufficient for the majority of domestic consumers.
Type of Refrigerant Fluid
R32

Energy Class

Energy Class (35ºC)
A+++
Energy Class (55ºC)
A++
COP (7ºC - 35ºC)
4.7

COP (7ºC - 35ºC)

(Coefficient Of Performance) is the measurement that shows how efficient our pump is (in terms of heating) in relation to the amount of energy it consumes. The higher the efficiency rating, the more efficient our pump is.
EER (7ºC - 35ºC)
2.55

EER (7ºC - 35ºC)

(Energy Efficiency Ratio) is the measurement that shows us how efficient our pump is in cooling. The higher the efficiency rating, the more efficient our pump is.
Indoor Unit Noise Level
-
Outdoor Unit Noise Level
-

Outdoor Dimensions

Length
1118 mm
Height
865 mm
Length
523 mm

Indoor Dimensions

Length
420 mm
Height
790 mm
Length
270 mm

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
