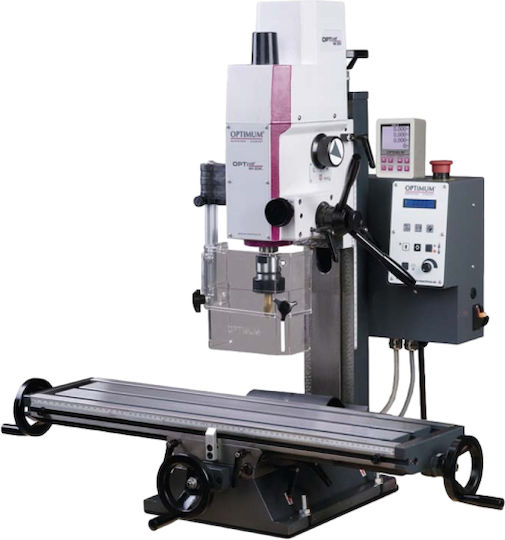

Optimum Drilling & MIlling Machine MH 20VLD with Power 750 Watt

The Optimum Milling Machine is characterized by its precision. It has high concentricity due to tapered roller bearings 0.015 mm measured on the axis and a two-stage transmission motor for powerful...

The Optimum Milling Machine is characterized by its precision. It has high concentricity due to tapered roller bearings 0.015 mm measured on the axis and a two-stage transmission motor for powerful power transmission. It also has manual axis feed and a strong DC motor with infinitely adjustable speed. The electronic safety features are in 24 Volt version...

See full description See full description
  • See all
3000 80
3,00€ cashback in Coins 3,00€ cashback in Coins
Delivery up to 10 days
31,50 €
Delivery to your floor available
Do you want it with Free shipping?
From Oxytools
Λάρισα, Λάρισας
10 pieces
See Tools on the page of Oxytools
What if it breaks?

You're covered by the statutory 2-year warranty. Contact us and we'll handle the entire process with the store, ensuring your issue is resolved with prompt support through a repair, replacement, or refund.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come and pick it up (completely free of charge if you have Skroutz Plus) and refund your money.

Description

Description

The Optimum Milling Machine is characterized by its precision. It has high concentricity due to tapered roller bearings ≤ 0.015 mm measured on the axis and a two-stage transmission motor for powerful power transmission. It also has manual axis feed and a strong DC motor with infinitely adjustable speed. The electronic safety features are in 24 Volt version and the control electronics have an integrated relay, while the control panel has a user-friendly membrane keyboard. It has a readable digital display for speed and drilling depth. The solid and large cross tables have T slots and adjustable wedges. It is equipped with adjustable stops and a fixed dovetail guide with adjustable wedges. An emergency stop switch is provided while the drilling and grinding head can tilt ± 60°. Forward/reverse rotation. It also has a machine lamp and double-row angular contact bearings on the axes, adjustable without play. The grease guards have adjustable height with a microswitch, for maximum user protection, and the X, Y, and Z axes have prepared slots for the next assembly of magnetic tapes.

Technical Specifications

Power: 750 W 230V 50Hz
Drilling capacity in steel (S235JR): Φ 16 mm
Milling capacity with quill: Φ 20 mm
Spindle taper: MT2
Number of spindle speeds (positions): 2 with gears
Spindle speed: 100- 3,000 rpm electronically adjustable
Table travel: X - Y - Z 480 / 175 / 210 mm
T slot size: 12mm
Dimensions: 770 x 714 x 917 mm
Weight: 99Kg

Manufacturer

See full description

Specifications

Specifications

Type
Drilling & MIlling Machine
Power
0.75 kW

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

Those users who have this product can help you

Ask for the product

Description & Specifications

The Optimum Milling Machine is characterized by its precision. It has high concentricity due to tapered roller bearings ≤ 0.015 mm measured on the axis and a two-stage transmission motor for powerful power transmission. It also has manual axis feed and a strong DC motor with infinitely adjustable speed. The electronic safety features are in 24 Volt version and the control electronics have an integrated relay, while the control panel has a user-friendly membrane keyboard. It has a readable digital display for speed and drilling depth. The solid and large cross tables have T slots and adjustable wedges. It is equipped with adjustable stops and a fixed dovetail guide with adjustable wedges. An emergency stop switch is provided while the drilling and grinding head can tilt ± 60°. Forward/reverse rotation. It also has a machine lamp and double-row angular contact bearings on the axes, adjustable without play. The grease guards have adjustable height with a microswitch, for maximum user protection, and the X, Y, and Z axes have prepared slots for the next assembly of magnetic tapes.

Technical Specifications

Power: 750 W 230V 50Hz
Drilling capacity in steel (S235JR): Φ 16 mm
Milling capacity with quill: Φ 20 mm
Spindle taper: MT2
Number of spindle speeds (positions): 2 with gears
Spindle speed: 100- 3,000 rpm electronically adjustable
Table travel: X - Y - Z 480 / 175 / 210 mm
T slot size: 12mm
Dimensions: 770 x 714 x 917 mm
Weight: 99Kg
