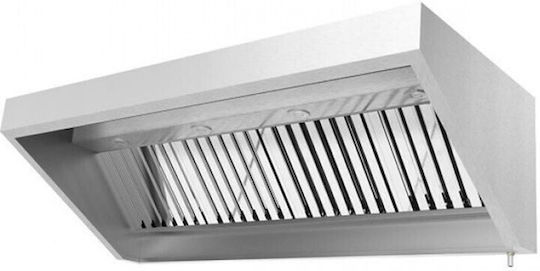

Professional wall-mounted exhaust hood of snack type.

Manufactured entirely from AISI 304 stainless steel with a satin Scotch-Brite finish.

Sheet thickness of 0.8 mm, grease filter supports for filters 3 cm wide. Welding in an inert argon atmosphere using the tig method.

Perimeter channel with smooth bends. Diameter and number of exhaust and intake air holes standardized but also customizable upon consultation.

• Grease extraction pipe.
• Grease collection tray.
• Dual energy with a 5 cm opening, fixed direction for incoming air flow.
• Dual energy hoods introduce air from the external environment, replenishing the air they exhaust.
• Prevent the exit of conditioned air from the kitchen space, reducing air conditioning costs.

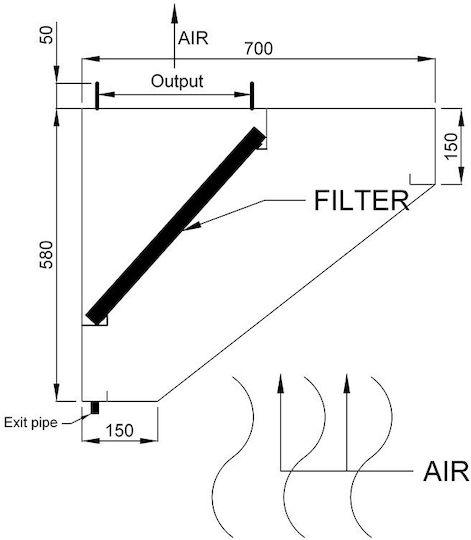

Dimensions: 1500x900x580 mm, weight: 32.6 kg.

Inlet diameter: Φ150, outlet diameter: Φ200, socket for three (3) filters (not included).

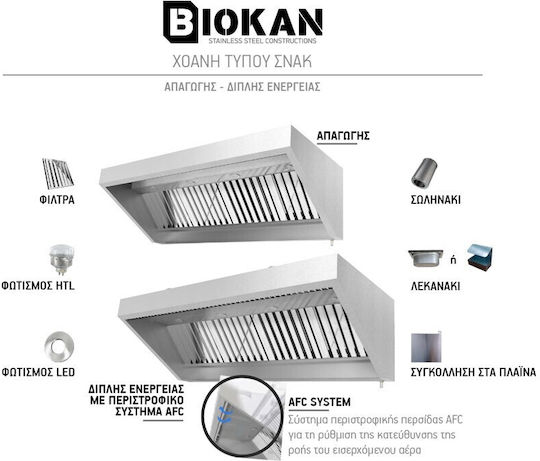

Optional features:

• Ability to manufacture with sheet thickness greater than 0.8 mm.
• Grease filters in standard sizes as well as customizable upon consultation.
• Hanging rings for ceiling attachment at no charge upon consultation.
• Ability to manufacture from other materials upon consultation.
• Built-in lighting with LED spotlights or HTL lamps resistant to high temperatures.
• Custom funnel dimensions and special constructions (adaptation to columns and corner hoods).
