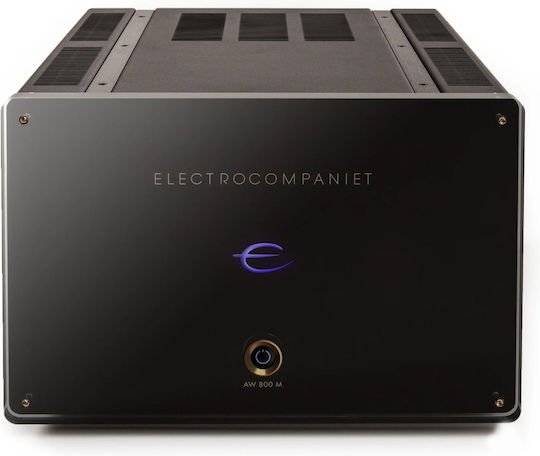

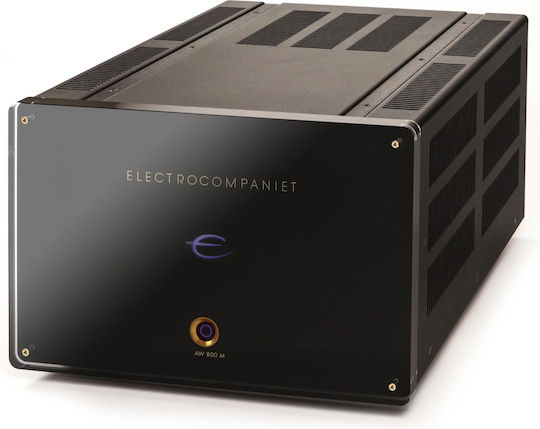

The AW 800 M is Electrocompaniet's new flagship power amplifier. It replaces the legendary AW 600 NEMO as our most powerful monoblock power amplifier. The amplifier features an updated, yet recognizable and distinctive Electrocompaniet design that perfectly matches all current and historical Electrocompaniet products.
- Input: 330 kΩ
- Frequency response (with filter active): 0.5 – 220 kHz
- Frequency response (without filter): 0.5 – 1.1 MHz
- Voltage gain (mono, balanced input): 35 dB (x56)
- Voltage gain (stereo, balanced input): 29 dB (x28)
- Input noise (20-20kHz):
- SNR (reference 1W/8Ω load, 20-20 kHz): 95 dB
- SNR (reference full output power, 20-20 kHz): 122 dB
- Slew rate (input filter off): 270 V/μs
- DC output voltage:
- THD+N: 0.0006 %
- IMD: 0.001 %
- Damping factor (8Ω load): > 1000
- Power consumption in standby:
- Protection: DC, overload, temperature
- Output capability in STEREO:
- 8Ω load: 2 x 300 W
- 4Ω load: 2 x 600 W
- 2Ω load: 2 x 1000 W
- Output capability in MONO:
- 8Ω load: 800 W
- 4Ω load: 1500 W
- 2Ω load: 2200 W
- Weight & Dimensions:
- Weight: 55 kg – 122 lbs
- Width: 406 mm – 15.98 inches
- Depth: 488 mm – 19.21 inches
- Height: 292 mm – 11.49 inches
Technical Specifications
- Type
- Power Amplifier
- Technology
- Solid
- Channels
- Mono
- Power (8Ω)
- 800 watt / channel
- Power (4Ω)
- 1500 watt / channel
- SNR
- 95 dB
Connectivity
- Phono
- No
- Optical
- No
- Coaxial
- No
- USB
- No
- Ethernet
- No
- Analog
- Yes
- Headphones
- No
- Subwoofer
- No
- Wifi
- No
- Bluetooth
- No
Features & Functions
- Radio
- No
Dimensions
- Width
- 40.6 cm
- Length
- 48.8 cm
- Height
- 29.2 cm
