FFG EXTREMIG 200 Welding Machine Inverter MIG / TIG / MMA with Maximum Welding Current 200A and Duty Cycle 15%
Welding Machines

FFG EXTREMIG 200 Welding Machine Inverter MIG / TIG / MMA with Maximum Welding Current 200A and Duty Cycle 15%

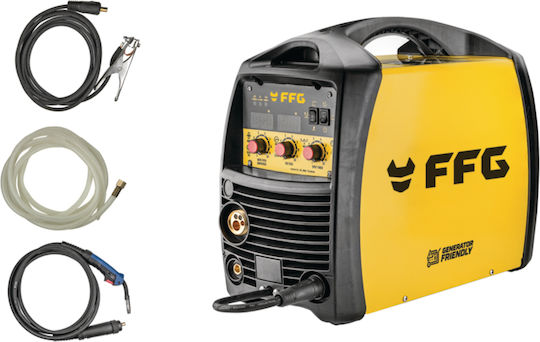

EXTREMIG 200 Welding Inverter (MIG/MMA/TIG)

Specifications

  • Nominal voltage: 230 V | 50 Hz
  • Type: Wire & Electrode
  • Welding current range (MIG): 30 - 200 A
  • Welding current range (MMA): 30 - 170 A
  • ...

EXTREMIG 200 Welding Inverter (MIG/MMA/TIG)

Specifications

  • Nominal voltage: 230 V | 50 Hz
  • Type: Wire & Electrode
  • Welding current range (MIG): 30 - 200 A
  • Welding current range (MMA): 30 - 170 A
  • Welding current range (TIG): 20 - 200 A
  • Power: 8.3 kVA
  • Max absorbed current: 36 A
  • No-load voltage (Uo): 68 V
  • Welding voltage: 15.5 ~ 24 V
  • Wire feed speed: 2 - 10...
See full description See full description

  • Welding Current

    200

    Suitable for professional use on thick metals, such as steel or cast iron constructions.

  • Duty Cycle

    The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

    2.

    For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.

  • Power Supply Voltage

    230

    It is the supply voltage that the machine requires from the electrical grid.

  • Power

    8.3

    Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
  • See all
530 26 €

-53,02€ for 2+ items

1,03€ cashback in bonus Coins 1,03€ cashback in bonus Coins
Delivery by Thu, 09 Jul
Free   shipping cost
From E-testo 4.8 (13)
4.8 (13 reviews)
Αγρίνιο, Αιτωλοακαρνανίας
In-store pickup available
3 pieces
See Tools on the page of E-testo
What if it breaks?

You have at least a 2-year warranty. Contact us by phone and we will immediately take care of the repair, replacement or refund of your money, completely free of charge.

What if I change my mind?

No problem, as long as it's within 14 days. We'll come pick it up or you can choose the Skroutz Point that suits you, completely free for up to 2 times per year, and we'll refund your money. Get Skroutz Plus to enjoy unlimited free returns.

Review the product
Product report

Description

Description

EXTREMIG 200 Welding Inverter (MIG/MMA/TIG)

Specifications

  • Nominal voltage: 230 V | 50 Hz
  • Type: Wire & Electrode
  • Welding current range (MIG): 30 - 200 A
  • Welding current range (MMA): 30 - 170 A
  • Welding current range (TIG): 20 - 200 A
  • Power: 8.3 kVA
  • Max absorbed current: 36 A
  • No-load voltage (Uo): 68 V
  • Welding voltage: 15.5 ~ 24 V
  • Wire feed speed: 2 - 10 m/min
  • Welding wire diameter: 0.6 - 1.0 mm
  • Cooling type: Air
  • Method: MIG | MMA | TIG
  • Duty cycle (MIG): 15%: 200A | 60%: 100A | 100%: 77A
  • Duty cycle (MMA): 15%: 170A | 60%: 85A | 100%: 66A
  • Duty cycle (TIG): 15%: 200A | 60%: 100A | 100%: 77A
  • Protection level: IP21S
  • Cable: 2 m
  • Dimensions (LxWxH): 49.4x22.0x38.0 cm
  • Weight: 11.0 kg

Description

  • Multi-task semi-automatic welding inverter, suitable for methods: MIG, MMA, and Lift TIG.
  • Advanced IGBT technology.
  • Welding method, 2T / 4T operation, and spot welding selection.
  • Hot start arc (HOT START), ANTI-STICK technology, arc force adjustment (ARC FORCE).
  • Ampere adjustment potentiometer (A), thermal protection (THERMAL PROTECTION), machine quick connectors 35-70, digital display.
  • Digital welding current and voltage indication.
  • LED indicators for power, overload, and under/over-voltage.
  • Compliant with: EN IEC 60974-1 and EN IEC 60974-10.
  • Enclosure protection IP21S.
  • Ergonomic carrying handle.
  • For use with a generator.

Included

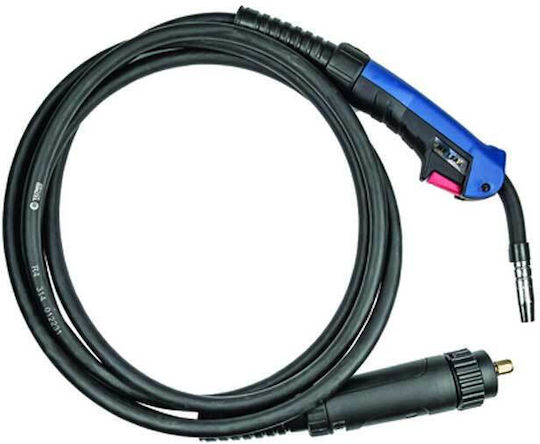

  • MIG 15A air-cooled clamp 4m (BINZEL MB 15AK)

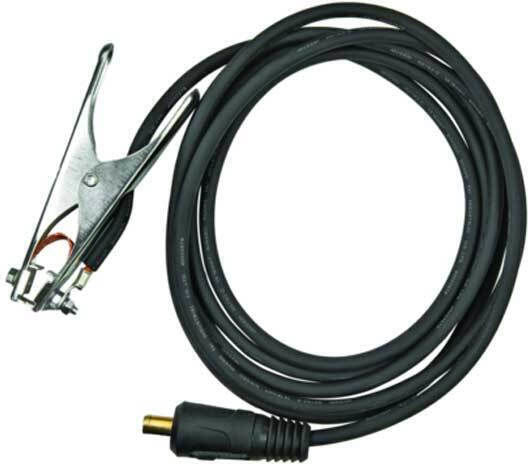

  • Ground clamp 4mx16mm² with clamp and 35-70 quick connection

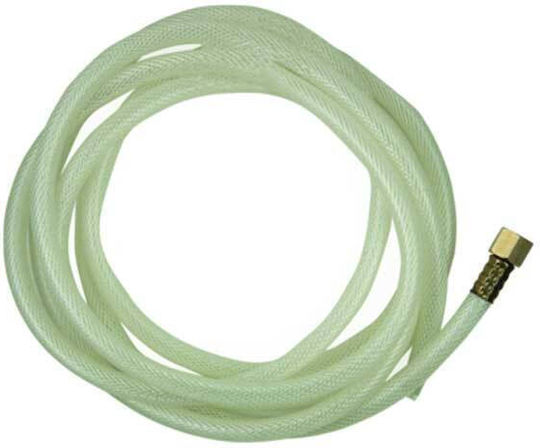

  • Gas hose 4m with connection
  • Nozzle 0.8
  • 1 roller with 2 sides (0.8mm - 1mm)

Manufacturer

Manufacturer Details

Warnings & Safety Information
See full description

Specifications

Specifications

Dimensions

Type
MIG, TIG, MMA

Type

MIG

The easiest welding method even for a beginner. 2. If the wire to be used does not have a special coating (flux), it should be connected to an external gas cylinder (e.g. argon, CO2).

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
15 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Power
8.3 kVA

Power: 8.3


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
4 mm

Maximum Electrode Diameter: 4


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Maximum Wire Diameter
1 mm

Maximum Wire Diameter: 1


The maximum wire thickness that the machine's wire feed can support, depending on the current intensity it can provide.
Weight
11000 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
Yes

2T Operation


Press and hold the torch button to start welding. Once you release it, the welding stops.
4T Mode
Yes

4T Mode


Press the button once to start welding and release it. You do not need to keep the button pressed.
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.

See all specifications
Questions

Questions

Do you have a question about the product?

1 user has this product and can help you

Ask for the product

Description & Specifications

EXTREMIG 200 Welding Inverter (MIG/MMA/TIG)

Specifications

  • Nominal voltage: 230 V | 50 Hz
  • Type: Wire & Electrode
  • Welding current range (MIG): 30 - 200 A
  • Welding current range (MMA): 30 - 170 A
  • Welding current range (TIG): 20 - 200 A
  • Power: 8.3 kVA
  • Max absorbed current: 36 A
  • No-load voltage (Uo): 68 V
  • Welding voltage: 15.5 ~ 24 V
  • Wire feed speed: 2 - 10 m/min
  • Welding wire diameter: 0.6 - 1.0 mm
  • Cooling type: Air
  • Method: MIG | MMA | TIG
  • Duty cycle (MIG): 15%: 200A | 60%: 100A | 100%: 77A
  • Duty cycle (MMA): 15%: 170A | 60%: 85A | 100%: 66A
  • Duty cycle (TIG): 15%: 200A | 60%: 100A | 100%: 77A
  • Protection level: IP21S
  • Cable: 2 m
  • Dimensions (LxWxH): 49.4x22.0x38.0 cm
  • Weight: 11.0 kg

Description

  • Multi-task semi-automatic welding inverter, suitable for methods: MIG, MMA, and Lift TIG.
  • Advanced IGBT technology.
  • Welding method, 2T / 4T operation, and spot welding selection.
  • Hot start arc (HOT START), ANTI-STICK technology, arc force adjustment (ARC FORCE).
  • Ampere adjustment potentiometer (A), thermal protection (THERMAL PROTECTION), machine quick connectors 35-70, digital display.
  • Digital welding current and voltage indication.
  • LED indicators for power, overload, and under/over-voltage.
  • Compliant with: EN IEC 60974-1 and EN IEC 60974-10.
  • Enclosure protection IP21S.
  • Ergonomic carrying handle.
  • For use with a generator.

Included

  • MIG 15A air-cooled clamp 4m (BINZEL MB 15AK)
  • Ground clamp 4mx16mm² with clamp and 35-70 quick connection
  • Gas hose 4m with connection
  • Nozzle 0.8
  • 1 roller with 2 sides (0.8mm - 1mm)

Manufacturer

Manufacturer Details

Warnings & Safety Information

Dimensions

Type
MIG, TIG, MMA

Type

MIG

The easiest welding method even for a beginner. 2. If the wire to be used does not have a special coating (flux), it should be connected to an external gas cylinder (e.g. argon, CO2).

TIG

Slow welding for detailed work on aluminum and stainless steel, mainly. Requires experience and connection to an external gas cylinder. Does not create "spatters".

MMA

Creates thick and strong bonds without the need for external gas supply, making it ideal for out-of-lab welding.
Welding Current (max)
200 A

Welding Current (max): 200


Suitable for professional use on thick metals, such as steel or cast iron constructions.
Operation Cycle (max Ampere)
15 %

Operation Cycle (max Ampere)

The Duty Cycle is the portion of a ten-minute period that a welding machine can operate continuously at maximum Amperes before it needs to stop and cool down.

2.

For example, a welding machine with a maximum Amperage of 200 A and a Duty Cycle of 30% can operate continuously at 200 A for 3 minutes before it needs to stop.
Supply Voltage
230 V

Supply Voltage: 230


It is the supply voltage that the machine requires from the electrical grid.
Power
8.3 kVA

Power: 8.3


Affects the power consumption of the machine and determines if it can be supported by the electrical network you are using.
Maximum Electrode Diameter
4 mm

Maximum Electrode Diameter: 4


The maximum electrode thickness that the machine can support, depending on the maximum current it can provide.
Maximum Wire Diameter
1 mm

Maximum Wire Diameter: 1


The maximum wire thickness that the machine's wire feed can support, depending on the current intensity it can provide.
Weight
11000 gr

Additional Features

Inverter
Yes

Inverter


New technology welding. Very good in terms of performance, durability, and weight, but with a high cost of repair in case of damage. They have automation for better and safer work. If connected to a generator, it is recommended to choose one with 8kVA or more.
IGBT
Yes

IGBT


Allows the conversion of direct current (DC) voltage to alternating current (AC) or the output of direct current at a higher or lower intensity.
VRD
No
with Voltage Stabilizer
No
for Generator with AVR
No

Features

Hot Start
Yes

Hot Start


Temporarily increases the current intensity at the moment of welding initiation.
Anti Stick
Yes

Anti Stick


Cuts off the current if the electrode sticks to the metal, to prevent it from burning.
Arc Force
Yes

Arc Force


Helps in the stability of the arc during welding.
2T Operation
Yes

2T Operation


Press and hold the torch button to start welding. Once you release it, the welding stops.
4T Mode
Yes

4T Mode


Press the button once to start welding and release it. You do not need to keep the button pressed.
Spot Function
No
Pulsed
No

Important information

Specifications are collected from official manufacturer websites. Please verify the specifications before proceeding with your final purchase. If you notice any problem you can report it here.
