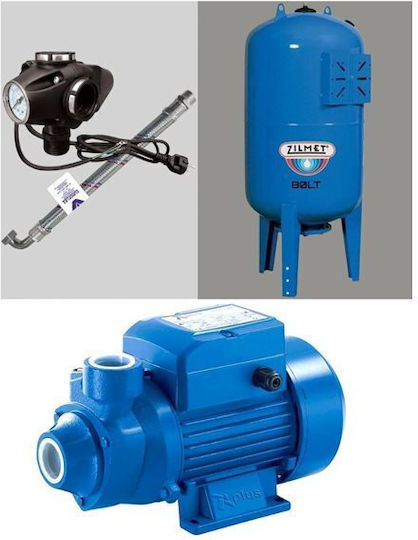

The pressure unit consists of:

• Pump
• Expansion tank
• Pressure switch kit with manometer
• Flexible hose

Type: PM10

Pump Type: Peripheral

Power (hp-Watt): 1Hp-736Watt

Voltage (Volt): 220 Volt/50 Hz

Pressure regulation: Pressure switch

Inlet port Φ (Inch-mm): 1"-25mm

Outlet port Φ (Inch-mm): 1"-25mm

Max Performance (M): 65.00

Max Flow (m3/h): 3.00

Body Material: Cast Iron

Impeller Material: Bronze

Automatic suction (M): No

Suction depth (M): 8

Pumped liquid temperature (°C): 60

Ambient temperature (°C): 40

Power Supply: Electric current

Tank arrangement: Vertical

Capacity (Lt): 80
