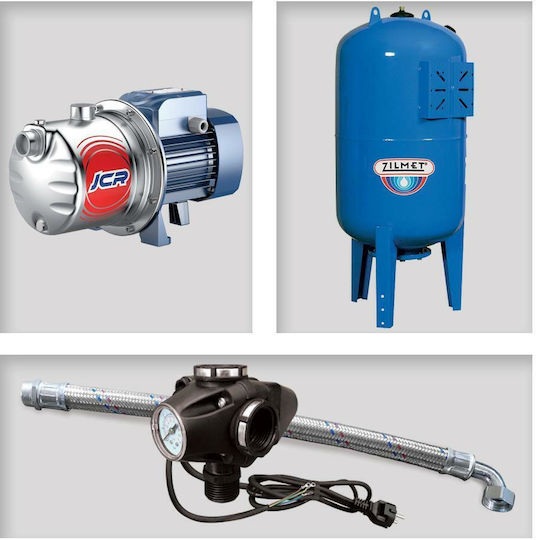

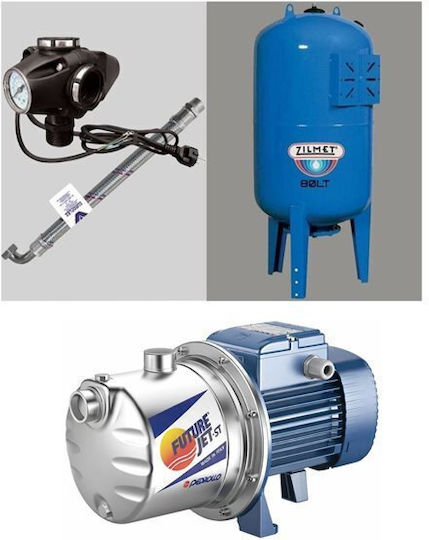

The pressure unit consists of:

• Pump
• Expansion tank
• Pressure switch kit with manometer
• Flexible hose

Type: JCRm2C

Pump Type: JET

Capacity (hp-Watt): 1Hp-736Watt

Voltage (Volt): 220 Volt/50 Hz

Pressure Regulation: Pressure switch

Inlet Diameter Φ (Inch-mm): 1"-25mm

Outlet Diameter Φ (Inch-mm): 1"-25mm

Max Performance (M): 50.00

Max Flow Rate (m3/h): 4.20

Body Material: Stainless steel AISI 304

Impeller Material: Stainless steel AISI 304

Self-priming (M): Yes

Suction Depth (M): 9

Pumped Liquid Temperature (°C): 40

Ambient Temperature (°C): 40

Power Supply: Electric

Tank Arrangement: Vertical

Capacity (Lt): 80
